Chapter 33: Q. 52 (page 957)

The wings of some beetles have closely spaced parallel lines of melanin, causing the wing to act as a reflection grating. Suppose sunlight shines straight onto a beetle wing. If the melanin lines on the wing are spaced 2.0渭mapart, what is the first-order diffraction angle for green light 位=550nm?

Short Answer

Expert verified

For green light, the first-order diffraction angle is胃m=16鈭�.

Step by step solution

01

Step: 1 Diffraction angle:

The smaller the value of d for a given order and wavelength, the higher the diffraction angle. To put it another way, the greater the number of slits per metre, the greater the diffraction angle.

02

Step: 2 Finding angle:

By grating equation,

dsin鈦�胃m=m位

The angle of mthfringe is there

sin鈦�胃m=m位d胃m=sin鈭�1鈦�m位d

03

Step: 3 Diffraction angle for green light:

The angle of light by

胃m=sin鈭�1鈦�1脳5.50脳10鈭�72脳10鈭�6胃m=sin鈭�1鈦�(0.275)胃m=16鈭�.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Helium atoms emit light at several wavelengths. Light from a helium lamp illuminates a diffraction grating and is observed on a screen50.00cmbehind the grating. The emission at wavelength 501.5nmcreates a first-order bright fringe 21.90cmfrom the central maximum. What is the wavelength of the bright fringe that is 31.60cmfrom the central maximum?

White light400-700nmincident on a 600line/mmdiffraction grating produces rainbows of diffracted light. What is the width of the first-order rainbow on a screen 2.0mbehind the grating?

A Michelson interferometer operating at a 600nmwavelength has a 2.00-cm-long glass cell in one arm. To begin, the air is pumped out of the cell and mirror M2is adjusted to produce a bright spot at the center of the interference pattern. Then a valve is opened and air is slowly admitted into the cell. The index of refraction of air at 1.00atmpressure is 1.00028. How many brightdark-bright fringe shifts are observed as the cell fills with air?

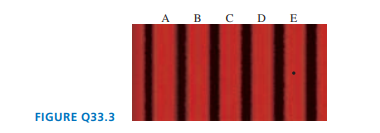

3. FIGURE Q33.3 shows the viewing screen in a double-slit experiment. FringeCis the central maximum. What will happen to the fringe spacing if
