Vector can be defined as a physical quantity which has magnitude as well as direction.

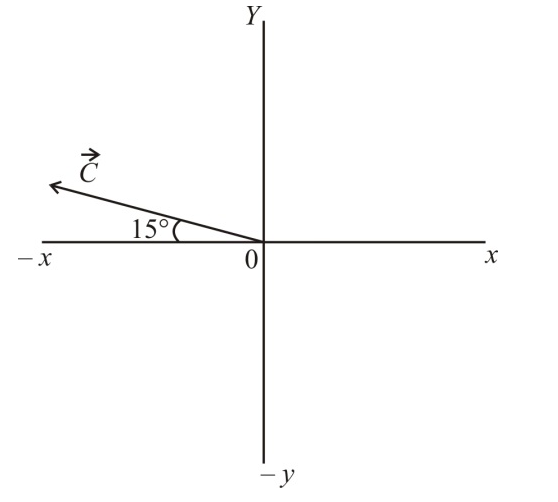

Draw the diagram for the given vector $\stackrel{→}{C}$as follows,

Here, the vector $\stackrel{→}{C}$is above the negative $x$-axis as shown in the figure.

Calculate the magnitude of the $x$-component, and $y$-component of the vector $\stackrel{→}{C}$.

The magnitude of$\stackrel{→}{C}$is,

$C=3.15\text{m}$

The$x$-component of$\stackrel{→}{C}$is,

$C_x=−C\cos \mathrm{θ}$

Here, $C$is the magnitude of the vector $\text{C}$and $\mathrm{θ}$is the angle.

Substitute $3.15\text{m}$ for $C$and ${15}^{°}$for $\mathrm{θ}$in above equation.

$\begin{array}{l}{C}_x=−(3.15\text{m})\cos \left({15}^{°}\right)\\ =−(3.15\text{m})\left(0.9659\right)\\ =−3.04\text{m}\end{array}$

Therefore, the magnitude of the $x$-component of the vector $\stackrel{→}{C}$is$−3.04\text{m}$.

The $y$-component of the vector $\stackrel{→}{C}$is,

$C_y=C\sin \mathrm{θ}$

Substitute $3.15\text{m}$for $C$and ${15}^{°}$for $\mathrm{θ}$in above equation.

$\begin{array}{l}{C}_y=(3.15\text{m})\sin \left({15}^0\right)\\ =(3.15\text{m})\left(0.2588\right)\\ =0.815\text{m}\end{array}$

Therefore, the magnitude of the $y$-component of the vector $\stackrel{→}{C}$is$0.815\text{m}$.

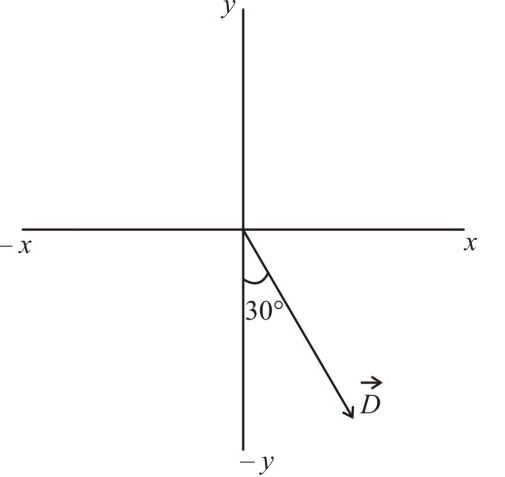

Draw the vector diagram for the given vector $\stackrel{→}{D}$as follows,

Calculate the magnitudes of the$x$-component, and$y$-component of the vector$\stackrel{→}{D}$.

The magnitude of$\stackrel{→}{D}$is,

$D=25.6\text{m}$

The$x$-component of$\stackrel{→}{D}$is,

$D_x=D\sin \mathrm{θ}$

Here,$D$is the magnitude of the vector$\stackrel{→}{D}$and$\mathrm{θ}$is the angle made by the vector$\stackrel{→}{D}$on the right side of the negative $y$-axis.

Substitute$25.6\text{m}$for$D$and${30}^{°}$for$\mathrm{θ}$in above equation.

$\begin{array}{l}{D}_x=(25.6\text{m})\sin \left({30}^{°}\right)\\ =(25.6\text{m})\left(0.5\right)\\ =12.8\text{m}\end{array}$

Therefore, the magnitude of the $x$-component of the vector $\stackrel{→}{D}$is$12.8\text{m}$.

The$y$-component of the vector$\stackrel{→}{D}$is,

$D_y=−D\cos \mathrm{θ}$

Substitute $25.6\text{m}$for $D$and ${30}^{°}$for $\mathrm{θ}$in above equation.

$\begin{array}{l}{D}_y=−(25.6\text{m})\cos \left({30}^{°}\right)\\ =−(25.6\text{m})\left(0.86602\right)\\ =−22.17\text{m}\end{array}$

Therefore, the magnitude of the $y$-component of the vector $\stackrel{→}{D}$is $−22.17\text{m}$.
