Chapter 16: Q. 8 (page 451)

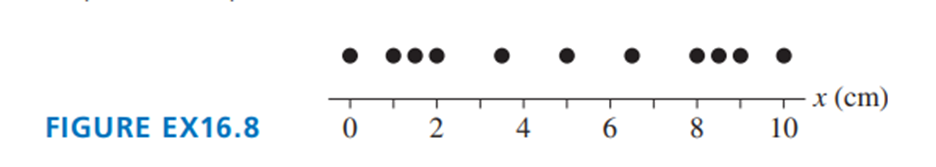

FIGURE EX16.8 is a picture at t = 0 s of the particles in a medium as a longitudinal wave is passing through. The equilibrium spacing between the particles is 1.0 cm. Draw the snapshot graph D (x, t = 0 s) of this wave at t = 0 s.

Short Answer

Expert verified

The snapshot graph of the wave is shown.

Step by step solution

01

Write the given information

The equilibrium space between each particle is 1 cm
The position of the particles is given when a longitudinal wave passes through the medium at a time t=0 sec

02

 Step 2: To draw the snapshot graph of the wave at time t= 0 sec

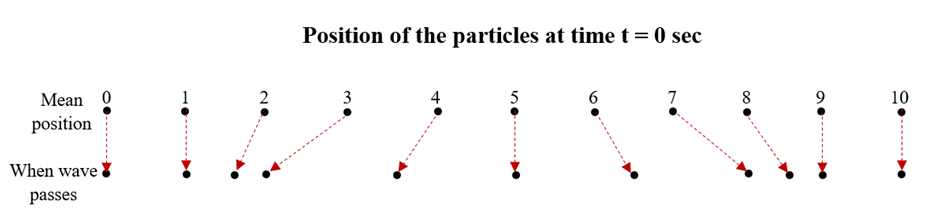

  • Draw the original position of the particle with the equilibrium spacing between them
  • Draw the change in the position of the particles when the wave passes
  • If the particle is moved towards the left, the displacement is negative, and if the position of the particle is towards the right then the displacement is considered positive

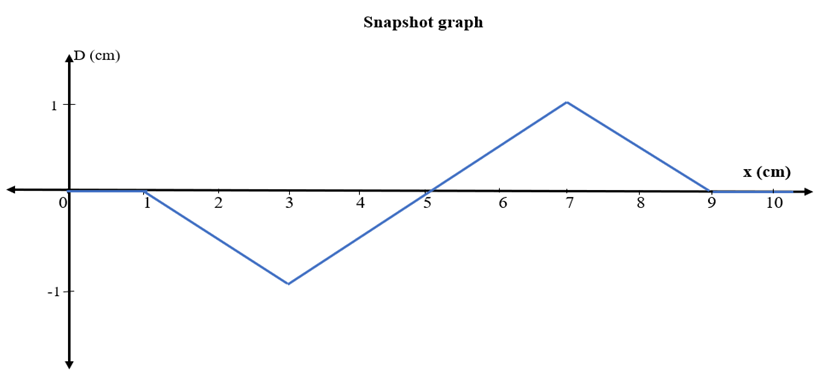

The snapshot graph of the wave is given below
