Draw the history graph D(x = 0 m, t) at x = 0 m for the wave shown in FIGURE EX16.5.

Short Answer

Expert verified

The history graph of the wave is shown.

Step by step solution

01

Write the given information

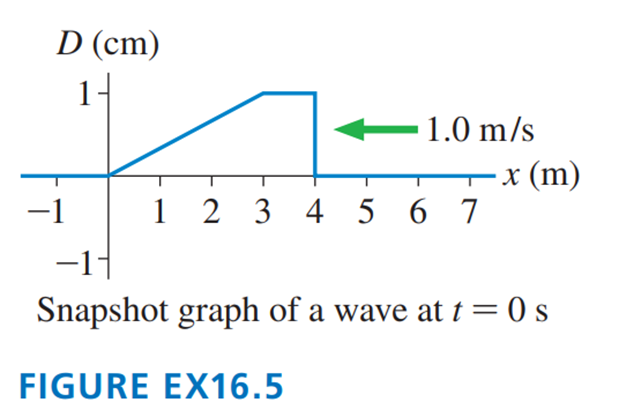

The snapshot graph of the wave is given at time t =0 sec
The velocity of the wave is given as v= 1 m/.sec
The wave is traveling from right to left direction

02

To draw the history graph of the wave at distance x= 0 m

A snapshot graph shows the displacement of the wave with respect to the position at a given time.
A history graph show the displacement of the wave with respect to the time at a given position.

Analyse the snapshot graph

  • With every second, wave travels 1-meter to the left
  • The wave would travel 4-meters in 4 seconds

The history graph is shown below.
