Chapter 12: Q. 68 (page 333)

Your engineering team has been assigned the task of measuring the properties of a new jet-engine turbine. You鈥檝e previously determined that the turbine鈥檚 moment of inertia is 2.6 kg m2. The next job is to measure the frictional torque of the bearings. Your plan is to run the turbine up to a predetermined rotation speed, cut the power, and time how long it takes the turbine to reduce its rotation speed by 50,. Your data are given in the table. Draw an appropriate graph of the data and, from the slope of the best-fit line, determine the frictional torque.

Short Answer

Expert verified

Frictional torque = 10.7 Nm.

Step by step solution

01

Given Information

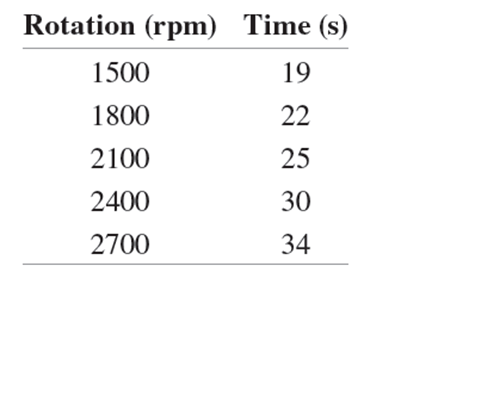

Data is given as below

02

Explanation

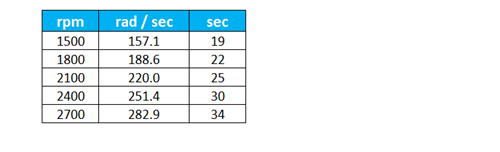

First re-create the table by changing the rpm to rad/sec

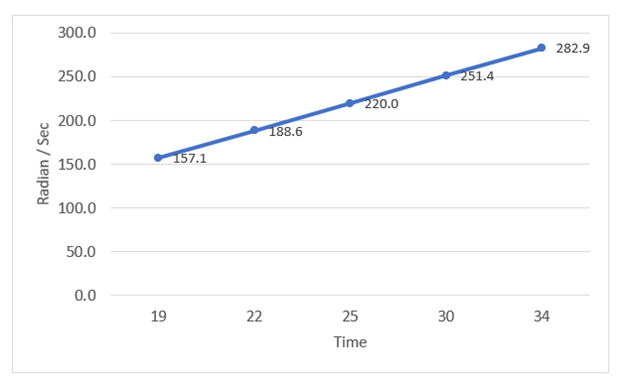

Now plot the graph

Find slope using any two data points

Slope=(220-157)rad/s)(25-19)s=0.121rad/s2

Angular acceleration is calculated as

蝇i2=蝇i+伪t鈬�t=蝇i2伪

It shows that, slope =-12伪

so

伪=-12(slope)

Substitute the value of slope, we get

localid="1649166916354" 伪=-12(0.121rad/s2)|伪|=4.13rad/s2

To find the torque now substitute the values in 蟿=I伪, we get

蟿=(2.6kgm2)(4.13rad/s2)=10.7Nm

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

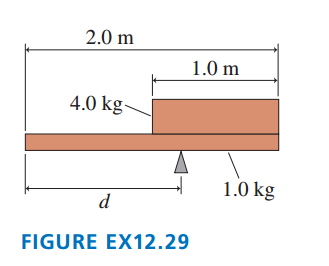

The two objects in FIGURE EX12.29 are balanced on the pivot. What is distance ?

A thin, uniform rod of length L and mass M is placed vertically on a horizontal table. If tilted ever so slightly, the rod will fall over.
a. What is the speed of the center of mass just as the rod hits the table if there鈥檚 so much friction that the bottom tip of the rod does not slide?
b. What is the speed of the center of mass just as the rod hits the table if the table is frictionless?

During most of its lifetime, a star maintains an equilibrium size in which the inward force of gravity on each atom is balanced by an outward pressure force due to the heat of the nuclear reactions in the core. But after all the hydrogen 鈥渇uel鈥� is consumed by nuclear fusion, the pressure force drops and the star undergoes a gravitational collapse
until it becomes a neutron star. In a neutron star, the electrons and protons of the atoms are squeezed together by gravity until they fuse into neutrons. Neutron stars spin very rapidly and emit intense pulses of radio and light waves, one pulse per rotation. These 鈥減ulsing
stars鈥� were discovered in the 1960s and are called pulsars.
a. A star with the mass M = 2.0 x 1030 kg and size R =7.0 x 108 m of our sun rotates once every 30 days. After undergoing gravitational collapse, the star forms a pulsar that is observed by astronomers to emit radio pulses every 0.10 s. By treating the neutron star as a solid sphere, deduce its radius.
b. What is the speed of a point on the equator of the neutron star? Your answers will be somewhat too large because a star cannot be accurately modeled as a solid sphere. Even so, you will be able to show that a star, whose mass is 106larger than the earth鈥檚, can be compressed by gravitational forces to a size smaller than a typical state in the United States!

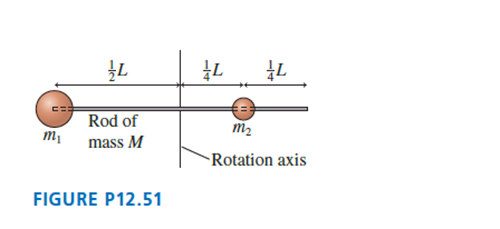

Determine the moment of inertia about the axis of the object shown in FIGURE P12.51.

A thin, 100g disk with a diameter of 8.0 cm rotates about an axis through its center with 0.15 J of kinetic energy. What is the speed of a point on the rim?
