Chapter 12: Q. 61 (page 333)

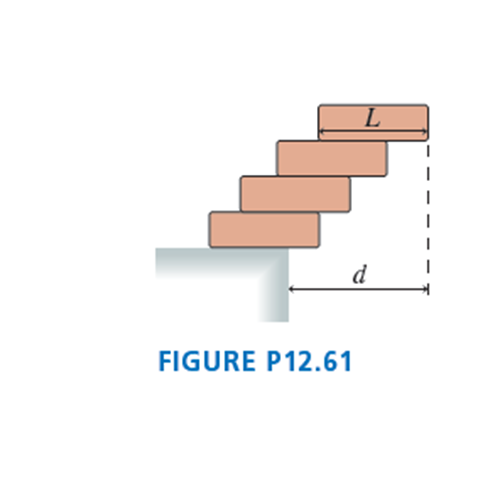

Your task in a science contest is to stack four identical uniform bricks, each of length L, so that the top brick is as far to the right as possible without the stack falling over. Is it possible, as Figure P12.61 shows, to stack the bricks such that no part of the top brick is over the table? Answer this question by determining the maximum possible value of d.

Short Answer

Expert verified

The maximum possible value of d = 4/5 L

Step by step solution

01

Given information

4 bricks with length of L each is stacked as shown in given figure.

02

Explanation

First find the center of mass using

xCoM=m1x1+m2x2+m3x3+m4x4m1+m2+m3+m4鈥�鈥�鈥�鈥�鈥�(1)

From the figure we see each brick is shifted d/4 rightwards, from the previous one,

so

x1=-L2+d4x2=-L2+2d4=-L2+d2x3=-L2+3d4x4=-L2+4d4=-l2+d

Use these in equation (1) we get

xCoM=mx1+x2+x3+x44m=14-2L+52d

For the stack to be stable xCom=0
This means

-2L+52d=0d=4/5L

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

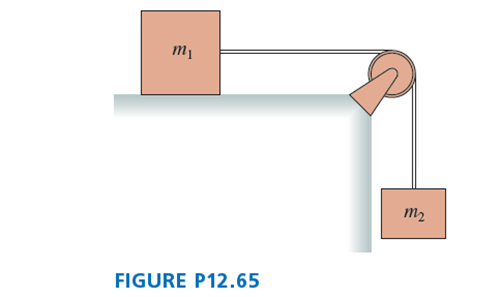

Blocks of mass m1 and m2 are connected by a massless string that passes over the pulley in Figure P12.65. The pulley turns on frictionless bearings. Mass m1 slides on a horizontal, frictionless surface. Mass m2 is released while the blocks are at rest.
