What are the charge on and the potential difference across each capacitor in FIGURE P26.56?

Short Answer

Expert verified

The charge on each capacitor is 60渭C, and the potential difference is respectivelyV1=5V,V2=15V,V3=10V.

Step by step solution

01

Given information

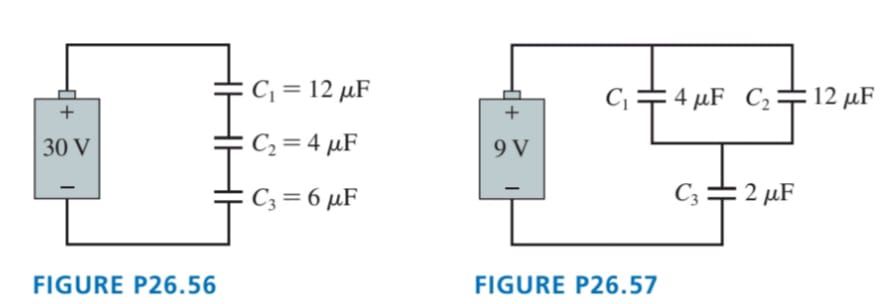

We have given that the FIGURE P26.56.

We need to find the charge on and the potential difference across each capacitor in FIGURE P26.56.

02

Simplify

If the capacitors are connected in series the charge on every capacitor is the same, and it is equal to the charge of a single equivalent capacitor. The expression for the equivalent capacitance Cof this series is given by

1C=1C1+1C2+1C3.

This yields

1C=C2C3C1C2C3+C1C3C1C2C3+C1C2C1C2C3,

or

C=C1C2C3C1C2+C2C3+C1C3=2渭F.

Therefore the charge on each capacitor is

q=CV=60渭C.

Then the potential difference on each capacitor is given as

V1=qC1=5V,V2=qC2=15V,V3=qC3=10V.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Derive Equation 26.33 for the induced surface charge density on the dielectric in a capacitor.

A nerve cell in its resting state has a membrane potential of -70mV, meaning that the potential inside the cell is 70mV less than the potential outside due to a layer of negative charge on the inner surface of the cell wall and a layer of positive charge on the outer surface. This effectively makes the cell wall a charged capacitor. When the nerve cell fires, sodium ions,Na+, flood through the cell wall to briefly switch the membrane potential to +40mV. Model the central body of a nerve cell-the soma-as a 50渭mdiameter sphere with a 7.0-nm-thick cell wall whose dielectric constant is 9.0. Because a cell's diameter is much larger than the wall thickness, it is reasonable to ignore the curvature of the cell and think of it as a parallel-plate capacitor. How many sodium ions enter the cell as it fires?

Figure Q26.7 shows an electric field diagram. Dashed lines 1 and 2 are two surfaces in space, not physical objects.

a. Is the electric potential at point a higher than, lower than, or equal to the electric potential at point b? Explain.

b. Rank in order, from largest to smallest, the magnitudes of the potential differences 鈭�Vab,鈭�Vcd,and鈭�Vef.

c. Is surface 1 an equipotential surface? What about surface 2? Explain why or why not.

What is the potential difference between xi=10cm and xf=30cm in the uniform electric field Ex=1000V/m?

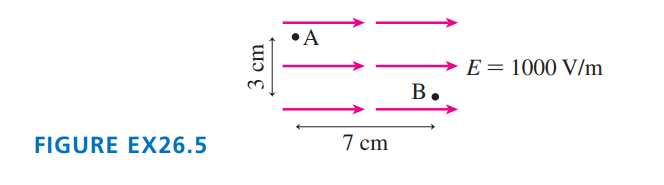

a. Which point in Figure EX26.5, 'A' or 'B', has a larger electric potential?
