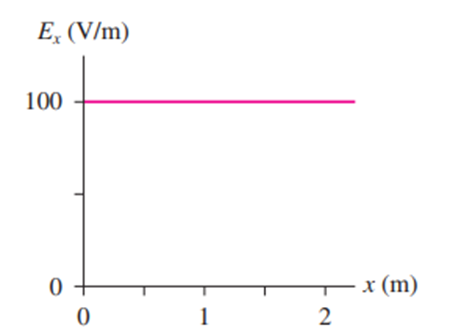

Figure Q26.1 shows the x-component of E鈫�as a function of x. Draw a graph of Vversusxin this same region of space. Let V=0Vatx=0mand include an appropriate vertical scale.

Short Answer

Expert verified

The required graph is

Step by step solution

01

: Given information and formula used

Given :

V=0Vatx=0min the graph :

Theory used :

Electric field is the negative slope (鈥渄erivative鈥� or 鈥済radient鈥�) of the potential.

E鈫�=鈭�螖V螖x

Potential energy is related to electric potential by the charge. It only makes sense if you know the sign & magnitude of the test charge you want to use.

02

Drawing a graph of V versus x

Since E鈫�=鈭�螖V螖x,so the required graph is :

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

You need to construct a 100 pF capacitor for a science project. You plan to cut two L * L metal squares and insert small spacers between their corners. The thinnest spacers you have are 0.20 mm thick. What is the proper value of L?

Two 5.0 mm * 5.0 mm electrodes are held 0.10 mm apart and are attached to a 9.0 V battery. Without disconnecting the battery, a 0.10-mm-thick sheet of Mylar is inserted between the electrodes. What are the capacitor鈥檚 potential difference, electric field, and charge

(a) before and

(b) after the Mylar is inserted?

Capacitors C1=10渭Fand C2=20渭Fare each charged to 10V, then disconnected from the battery without changing the charge on the capacitor plates. The two capacitors are then connected in parallel, with the positive plate of C1connected to the negative plate of C2and vice versa. Afterward, what are the charge on and the potential difference across each capacitor?

A battery with an emf of 60Vis connected to the two capacitors shown in FIGURE P26.62. Afterward, the charge on capacitor 2is 450渭C. What is the capacitance of capacitor 2?

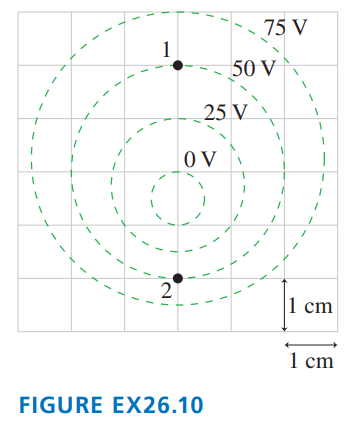

Determine the magnitude and direction of the electric field at points 1 and 2 in Figure EX26.10.
