The cycle of FIGURE EX 21.10consists of four processes. Make a table with rows labeled Ato Dand columns labeled ∆Eth, Ws, and Q. Fill each box in the table with +,-, or 0to indicate whether the quantity increases, decreases, or stays the same during that process.

Short Answer

Expert verified

Result can be found taking into consideration that the processes are isochoric, adiabatic, isothermal and isobaric from A to D respectively.

Step by step solution

01

Introduction

Isochoric process, also known as constant-volume process, in thermodynamics, is a thermodynamic process in which the volume of the closed system remains constant. In the figure A is the isochoric process. D is the isobaric process . In this process, pressure remains constant. In B , which is a adiabatic process , no heat is given to the system and no heat is extracted . In isothermal process C , temperature and hence internal energy of the system remains constant.

02

Explanation

In isochoric process , work done by gas is zero because of fixed volume. Pressure increases due to addition of heat . In isobaric process D , volume decreases , so work done is negative, Volume decreases due to cooling , hence internal energy decreases . In adiabatic process , Q is zero . Volume increases so work done is positive . In isothermal process , internal energy remains constant because of constant temperature and as volume increases , work done is positive due to addition of heat.

Taking this into consideration we can construct the following table:

03

The cycle processes

The findings are summarized by considering the isochoric, adiabatic, isothermic, and isobaric processes.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In Problems 65through 68you are given the equation(s) used to solve a problem. For each of these, you are to

a. Write a realistic problem for which this is the correct equation(s).

b. Finish the solution of the problem.

0.80=1-0°C+273/TH+273

A heat engine using 120mgof helium as the working substance follows the cycle shown in FIGURE P21.61.

a. Determine the pressure, temperature, and volume of the gas at points 1,2, and 3.

b. What is the engine's thermal efficiency?

c. What is the maximum possible efficiency of a heat engine that operates between TmaxandTmin?

FIGURE CP21.70shows two insulated compartments separated by a thin wall. The left side contains 0.060molof helium at an initial temperature of 600Kand the right side contains 0.030molof helium at an initial temperature of 300K. The compartment on the right is attached to a vertical cylinder, above which the air pressure is 1.0atm. A 10-cm-diameter,2.0kg piston can slide without friction up and down the cylinder. Neither the cylinder diameter nor the volumes of the compartments are known.

a. What is the final temperature?

b. How much heat is transferred from the left side to the right side?

c. How high is the piston lifted due to this heat transfer?

d. What fraction of the heat is converted into work?

The electric output of a power plant is 750MW. Cooling water flows through the power plant at the rate 1.0*108L/h. The cooling water enters the plant at 16°Cand exits at27°C. What is the power plant’s thermal efficiency?

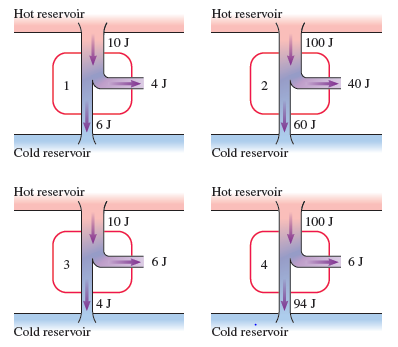

Rank in order, from largest to smallest, the thermal efficiencies η1to η4of the four heat engines in FIGURE Q21.5. Explain.
