Chapter 14: Q. 12 (page 383)

A 2000 N force stretches a wire by 1 mm. A second wire of the same material is twice as long and has twice the diameter. How much force is needed to stretch it by 1 mm? Explain

Short Answer

Expert verified

The force required to stretched the second wire by 1mmis4000N.

Step by step solution

01

Given information

Force on wire is F=2000N

The length of the second wire is role="math" localid="1650289361551" L2=2L1

The diameter of the second wire is role="math" localid="1650289386744" d2=2d1

鈭�L=1mm

02

Area of the second wire

As the diameter of the second wire is d2=2d1, the radius of the second wire is r2=2r1.

The area of the second wire is

role="math" localid="1650289304101" A2=蟺谤22=蟺2r12=4蟺谤12=4A

03

Force required to stretched the second wire by 1 mm

Linear stretch and compression is given by FA=Y鈭�LL.

The force required to stretch the second wire with the length of role="math" localid="1650288979993" 鈭�L=1mmis

role="math" localid="1650289601869" F2=A2Y鈭�LL2=4A1Y鈭�L2L1=2A1Y鈭�LL1=2F1=22000=4000N

Therefore, the force to stretch the second wire with the length of1mmis4000N.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A nuclear power plant draws 3.0脳106L/min of cooling water from the ocean. If the water is drawn in through two parallel,3.0鈭�m-diameter pipes, what is the water speed in each pipe?

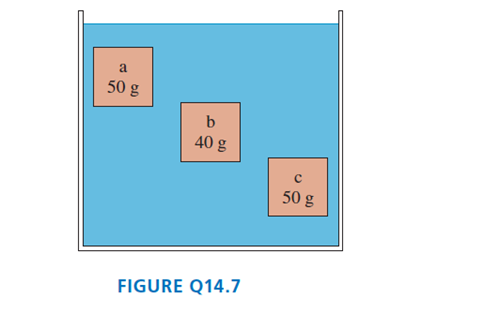

Blocks a, b, and c in FIGURE Q14.7 have the same density. Rank in order, from largest to smallest, the sizes of the buoyant forces Fa , Fb , and Fc on a, b, and c. Explain

A research submarine has a 20-cm-diameter window 8.0 cm thick. The manufacturer says the window can withstand forces up to 1.0 * 106 N. What is the submarine鈥檚 maximum
safe depth? The pressure inside the submarine is maintained at 1.0 atm.

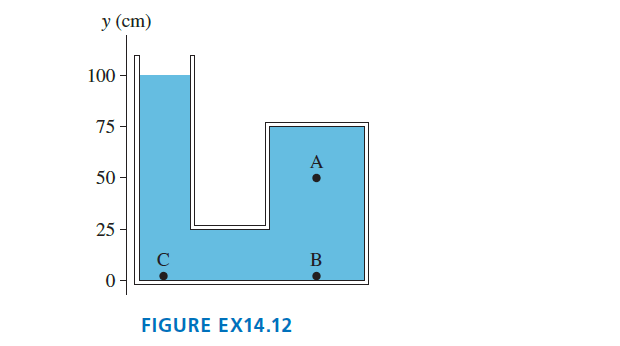

The container shown in FIGURE EX14.12 is filled with oil. It is open to the atmosphere on
the left.
a. What is the pressure at point A?
b. What is the pressure difference between points A and B? Between points A and C?

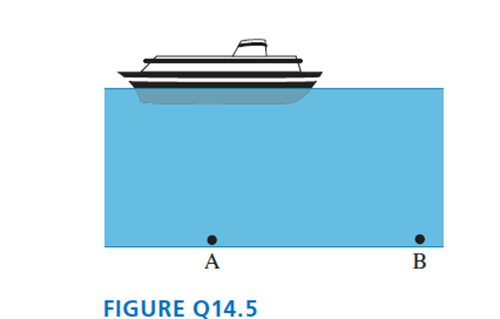

In FIGURE Q14.5, is pA larger than, smaller than, or equal to pB? Explain
