Chapter 30: Q.65 (page 873)

One possible concern with MRI (see Exercise 28) is turning the magnetic field on or off too quickly. Bodily fluids are conductors, and a changing magnetic field could cause electric currents to flow through the patient. Suppose a typical patient has a maximum cross section area of 0.060m2. What is the smallest time interval in which a 5.0Tmagnetic field can be turned on or off if the induced emfaround the patient's body must be kept to less than 0.10V??

Short Answer

Expert verified

The smallest time interval,dt=3s

Step by step solution

01

Step 1:

The emf, is specified by Faradays, is the change in magnetic flux inside the loop, and it is given

蔚=d桅mdt

The flux it through loop is the measure of magnetic field that flows through a loop of area A and is given by

桅m=BA

02

Magnetic Flux

We use the expression of 桅m

蔚=Ad(BA)dt=AdBdt

The values we provided for A,蔚anddB

dt=AdB蔚

=0.060m2(5T)0.10V

=3s

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

What is the magnetic flux through the loop shown in FIGURE EX30.4?

Your camping buddy has an idea for a light to go inside your tent. He happens to have a powerful and heavy horseshoe magnet that he bought at a surplus store. This magnet creates a 0.20Tfield between two pole tips 10cmapart. His idea is to build the hand-cranked generator shown in FIGURE .He thinks you can make enough current to fully light a 1.0鈩�lightbulb rated at 4.0W. That鈥檚 not super bright, but it should be plenty of light for routine activities in the tent.

a. Find an expression for the induced current as a function of time if you turn the crank at frequency f. Assume that the semicircle is at its highest point at t=0s.

b. With what frequency will you have to turn the crank for the maximum current to fully light the bulb? Is this feasible?

FIGURE shows a 4.0-cm-diameter loop with resistance 0.10鈩�around a 2.0-cm-diameter solenoid. The solenoid is 10 cm long, has 100turns, and carries the current shown in the graph. A positive current is cwwhen seen from the left. Find the current in the loop at(a)t=0.5s,(b)t=1.5s,and(c)t=2.5s.

The charger for your electronic devices is a transformer. Suppose a 60Hzoutlet voltage of 120Vneeds to be reduced to a device voltage of 3.0V. The side of the transformer attached to the electronic device has 60turnsof wire. How many turns are on the side that plugs into the outlet?

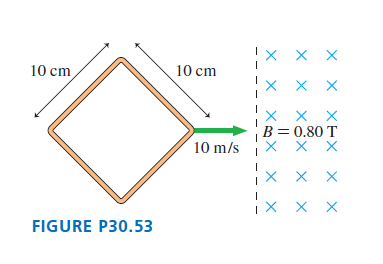

The square loop shown inFIGUREP30.53 moves into a 0.80TALCmagnetic field at a constant speed of10m/s.The loop has a resistance of 0.10惟, and it enters the field at t=0s.
