A 20cm×20cmsquare loop has a resistance of 0.10Ω. A CALC magnetic field perpendicular to the loop is B=4t-2t2, where Bis in Tesla andtis in seconds. What is the current in the loop at t=0.0s,t=1.0s,andt=2.0s?

Short Answer

Expert verified

Current in the loop at I0sis 1.6A.

Current in the loop at I1sis 0A.

Current in the loop at I2sis -1.6A.

Step by step solution

01

Formula for electric flux inside the loop

The magnetic field is expressed in terms of time in the form

B=4t-2t2

The loop's current state is,

Iinduced=εR

ε=»åΦmdt

The electric flow as a function of area is,

Φm=NBA

So,

ε=NAd(BA)dt=NAdBdt

02

Calculation for current in the loop att=0.0 s

Current that has been induced is,

Iinduced=NARdBdt

=NARddt4t-2t2

=NAR(4-4t)

The area of the loop is calculated using

A=0.20m×0.20m=4×10-2m2

At t=0.0s:

Induced current is,

I0s=NAR(4-4t)

=(1)4×10-2m20.10Ω(4-4(0s))

=1.6A

03

Calculation for current in the loop at t=1.0 s and t=2.0 s

At t=1.0s:

Induced current is,

I1s=NAR(4-4t)

=(1)4×10-2m20.10Ω(4-4(1s))

=0A

At t=2.0s:

Induced current is,

I2s=NAR(4-4t)

=(1)4×10-2m20.10Ω(4-4(2s))

-1.6A=(1)4×10-2m20.10Ω(4-4(1s))

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

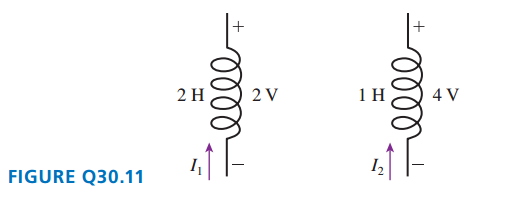

11. a. Can you tell which of the inductors in FIGURE Q30.11 has the larger current through it? If so, which one? Explain.
