Chapter 30: Q. 12 (page 869)

12. An LC circuit oscillates at a frequency of2000Hz . What will the frequency be if the inductance is quadrupled?

Short Answer

Expert verified

If the inductance is quadrupled, the value of the frequency will be 1000Hz

Step by step solution

01

Step 1. Given information

Initial frequency:f=2000Hz

The frequency of a LC circuit is given by

f=12蟺LC

02

Step 2. Explanation

Consider the inductance and capacitance of the circuit is L and C, hence the initial frequency of the circuit is

fi=12蟺LC

If the inductance is quadrupled, the new inductance of the inductor will be 4L, hence, the final frequency of the circuit will be

ff=12蟺4LC=1212蟺LC=12(2000Hz)=1000Hz

If the inductance is quadrupled, the value of the frequency will be1000Hz

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The 10-cm-wide, zero-resistance slide wire shown in FIGURE is pushed toward the 2.0鈩�resistor at a steady speed of 0.50m/s. The magnetic field strength is 0.50T.

a. How big is the pushing force?

b. How much power does the pushing force supply to the wire?

c. What are the direction and magnitude of the induced current?

d. How much power is dissipated in the resistor?

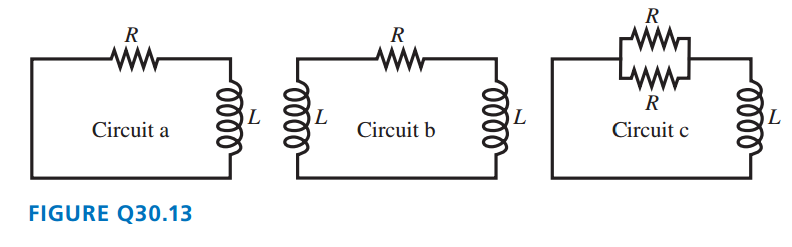

13. Rank in order, from largest to smallest, the three time constants 蟿ato 蟿cfor the three circuits in FIGURE Q30.13. Explain.

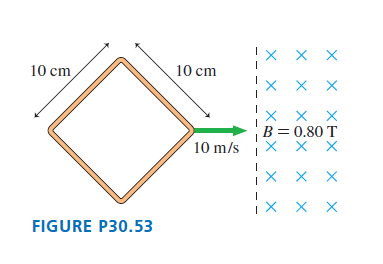

The square loop shown inFIGUREP30.53 moves into a 0.80TALCmagnetic field at a constant speed of10m/s.The loop has a resistance of 0.10惟, and it enters the field at t=0s.

a. Find the induced current in the loop as a function of time. Give your answer as a graph of ii versus tfrom t=0sto t=0.020s.

b. What is the maximum current? What is the position of the loop when the current is maximum?

68. II A inductor with negligible resistance has a 1.0 A current through it. The current starts to increase at t=0s, creating a constant 5.0mVvoltage across the inductor. How much charge passes through the inductor between 5.0mVand t=5.0s?

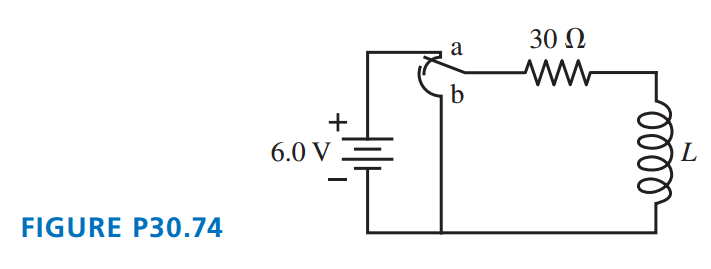

74. II The inductor in FIGURE P30.74 is a 9.0鈭�cm-long, 2.0鈭�cm鈭�diameter solenoid wrapped with 300 turns. What is the current in the circuit 10渭safter the switch is moved from a to b ?
