Chapter 31: Q. 3 (page 900)

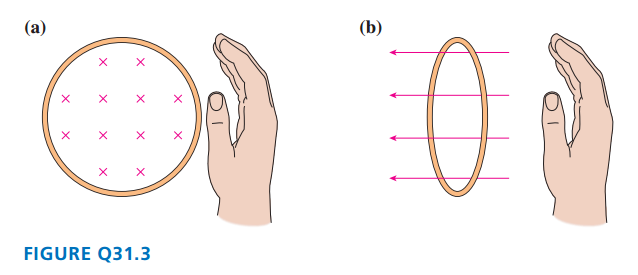

3. If you curl the fingers of your right hand as shown, are the electric fluxes in FIGURE Q31.3 positive or negative?

Short Answer

Expert verified

Part (a) The flux is negative.

Part (b) The flux is positive.

Step by step solution

01

Step 1. Introduction

Curl the right hand fingers around the loop with the thumb perpendicular to the surface of the loop. The thumb defines the positive direction.

If the electric field is directed along the direction of thumb then the flux through the surface is positive. If the electric field is directed opposite to the direction of thumb then the flux is negative.

02

Part (a)

In figure (a),

Curl the right hand fingers around the loop the thumb is directed out of the page, and electric field is directed into the page. So, the flux is negative.

03

Part (b)

In figure (b),

Curl the right hand fingers around the loop the thumb direction is left side, and electric field directed towards the left. So, the flux is positive.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

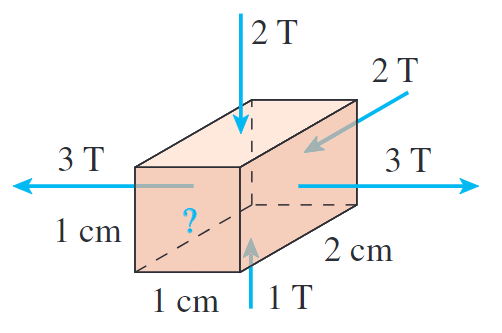

The magnetic field is uniform over each face of the box shown in FIGUREEX31.6. What are the magnetic field strength and direction on the front surface?
