Chapter 8: Q.2 (page 198)

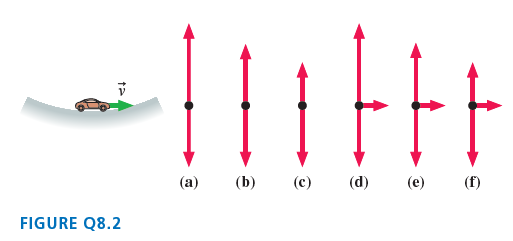

A car runs out of gas while driving down a hill. It rolls through the valley and starts up the other side. At the very bottom of the valley, which of the free-body diagrams in FIGURE Q8.2 is correct? The car is moving to the right, and drag and rolling friction are

negligible.

Short Answer

Expert verified

Option a is the best suitable free body diagram for this car.

Step by step solution

01

Given information

A car runs out of gas while driving down a hill. It rolls through the valley and starts up the other side.

Proof:

We can analyze the situation quantitatively by writing the r-component of Newton鈥檚 second law. At the bottom of the circle, with the r-axis pointing upward, we have

鈭�Fr=nr+(FG)r=n-mg=mar=m(vcar)2r

From the above equation, we find,

n=mg+m(vcar)2r

The normal force at the bottom is larger than mg. The normal force of the track pushes up when the car is at the bottom of the circle.

02

Explanation

The normal force at the bottom is larger than mg. The normal force of the track pushes up when the car is at the bottom of the circle. Option a in the given FIGURE Q8.2 is the suitable free body diagram.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

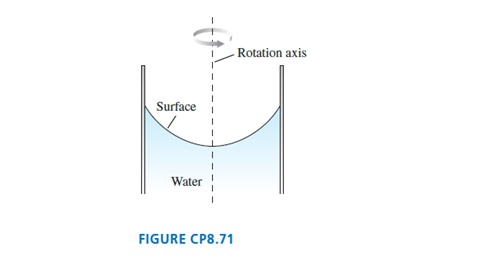

If a vertical cylinder of water (or any other liquid) rotates about its axis, as shown in FIGURE CP8.71, the surface forms a smooth curve. Assuming that the water rotates as a unit (i.e., all the water rotates with the same angular velocity), show that the shape of the surface is a parabola described by the equationz=蝇22gr2

Hint: Each particle of water on the surface is subject to only two forces: gravity and the normal force due to the water underneath it. The normal force, as always, acts perpendicular to the surface.

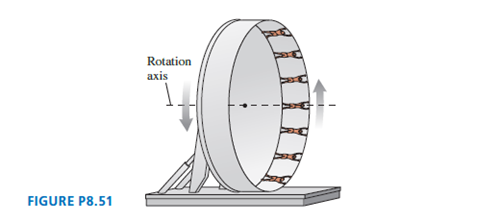

In an amusement park ride called The Roundup, passengers stand inside a 16-m-diameter rotating ring. After the ring has acquired sufficient speed, it tilts into a vertical plane, as shown in FIGURE P8.51.
