Chapter 32: Q. 37 (page 925)

The motor of an electric drill draws a 3.5Arms current at the power-line voltage of 120Vrms. What is the motor's power if the current lags the voltage by20掳.

Short Answer

Expert verified

The motor's power is394.98W.

Step by step solution

01

Given Information

We have given that Irms=3.5Aand Vrms=120Vand the phase angle 蠒=20掳.

We have to find the power of motor.

02

Formula Used

Now, using the formula

P=Irms.Vrms.cos蠒let this be equation 1

where P is the power of motor and Irmsis rms current and Vrmsis rms voltage and 蠒is the phase angle.

03

Simplify

Now, by putting all the values in equation 1,

We get,

P=3.5脳120脳cos20掳

On solving,

We get P=394.98W

Hence, the power of motor is394.98W

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

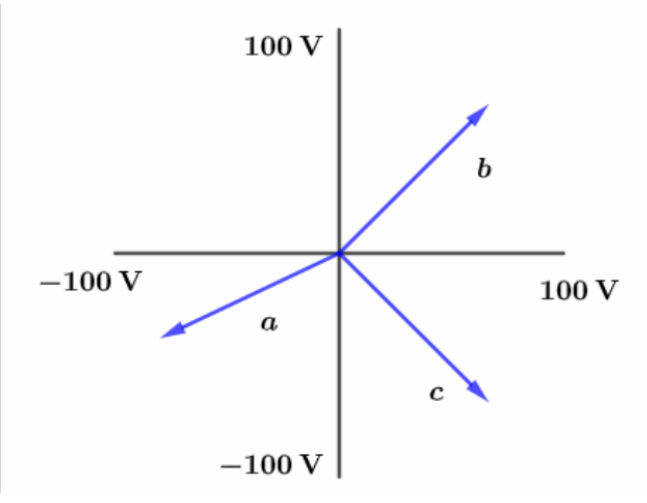

FIGURE Q32.1shows emf phasors a, b, and c.

a. For each, what is the instantaneous value of the emf?

b. At this instant, is the magnitude of each emf increasing, decreasing, or holding constant?

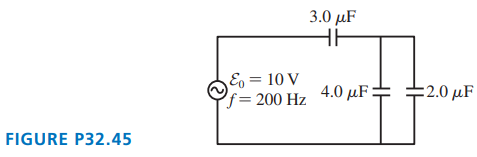

a. What is the peak current supplied by the emf in FIGUREP32.45?

b. What is the peak voltage across the 3.0mFcapacitor?

A low-pass filter consists of a 100mFcapacitor in series with a 159鈩�resistor. The circuit is driven by an ACsource with a peak voltage of 5.00V.

a. What is the crossover frequency fc?

b. What is VCwhen f=12fc,fc and 2fc?

An inductor is connected to a 15KHzoscillator. The peak current is 65mAwhen the rms voltage is width="36">6.0V. What is the value of the inductance L?

A low-passRC filter with a crossover frequency of 1000Hzuses a 100鈩�resistor. What is the value of the capacitor?
