Figure 16.60 shows a portion of a long, negatively charged rod. You need to calculate the potential differenceVA-VB.

(a) What is the direction of the path (+y or 鈭抷)? (b) What is the sign of VA-VB?

Short Answer

Expert verified

a) The direction of path is negative y-direction.

b) The sign of the potential difference is negative.

Step by step solution

01

Identification of given data

The given data can be listed below,

  • The charge on the rod is, -q
  • The potential difference is,VA-VB
02

Concept/Significance of the electric potential.

The effort done by the field in moving unit positive charge from the reference point to the place where potential is to be found determines electric potential at any point in the field.

03

(a) Determination of the direction of the path +y or -y

The potential difference can be determined by going from point B to A which is from positive y-direction towards the negative y-direction.

Thus, the direction of path is negative y-direction.

04

(b) Determination of the sign of VA-VB.

The positive side point B has higher potential energy than the negative side point A. So, the potential difference鈭�V=VA-VB is negative.

Thus, the sign of the potential difference is negative.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

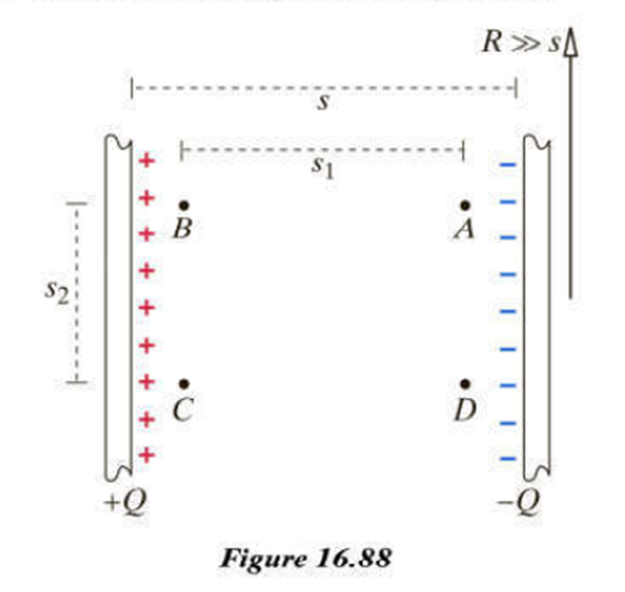

A capacitor consists of two charged disks of radiusR separated by a distances, whereR>>s. The magnitude of the charge on each disk is Q. Consider points A, B, C, and D inside the capacitor, as shown in Figure 16.88. (a) Show that螖V=VC鈭�VAis the same for these paths by evaluating 鈭哣 along each path: (1) Path 1:A = B = C, (2) Path 2:A=C, (3) Path 3:A=D=B=C. (b) If,Q=43鈥坝糃,R=4鈥尘,s1=1.5鈥尘m ands2=0.7鈥尘m, what is the value of螖V=VC鈭�VA? (c) Choose two different paths from point A back to point A again, and show that鈭�V=0for a round trip along both of these paths.
