Should an ammeter have a low or high resistance? Why? Should a voltmeter have a low or high resistance? Why?

Short Answer

Expert verified

An ammeter should have low resistance since it is connected in series. A voltmeter should have high resistance since it is connected in parallel.

Step by step solution

01

Given data

An ammeter and voltmeter are provided.

02

Current and resistance

Current through a circuit path is inversely proportional to the total resistance in that path.

03

Determination of resistances of ammeter and voltmeter

An ammeter is connected in series in a circuit. Hence it must have low resistance so as not to modify the total resistance of the circuit much. If it does, then it will modify the current which it has to measure.

A voltmeter is connected in parallel to the circuit. It provides an alternate path for the current to flow. So it must have very high resistance so that current doesn't flow through that path keeping the current and voltage in the original circuit unchanged.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The capacitor in Figure 19.67 is initially uncharged, then the circuit is connected. Which graph in Figure 19.66 best describes the current through the bulb as a function of time?

State whether the following statement is true or false, and briefly explain why: 鈥淚n the two circuits shown in Figure 19.64, the battery output power is greater in circuit 2 because there is an additional resistor dissipating power.鈥

A circuit consists of two batteries (with negligible internal resistance), five ohmic resistors (Figure 19.88). The connecting wires that have negligible resistance. The letters A through are shown to make it possible to refer to specific parts of the circuit.

(a) Write all the equations necessary to solve for the unknown currents I1, I2, I3, I4 and I5, whose directions are indicated on the circuit diagram. Do not solve the equations but do explain very clearly what your equations are based on and to what they refer.

Assume that a computer program has solved your equations in terms of known battery voltages and known resistances so that the currents I1, I2,I3 ,I4and I5are are known. (b) In terms of known quantities calculate VD-VAand check that your sign makes sense. (c) In terms of known quantities, calculate the power produced in battery number 2.

The capacitor in Figure 19.68 is initially uncharged, then the circuit is connected. Which graph in Figure 19.66 best describes the magnitude of the fringe field of the capacitor at location A(inside the connecting wire) as a function of time?

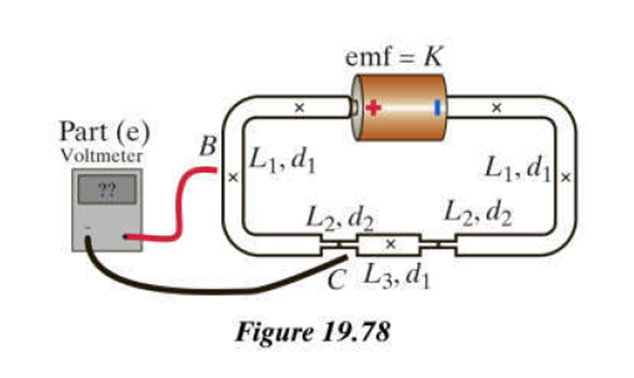

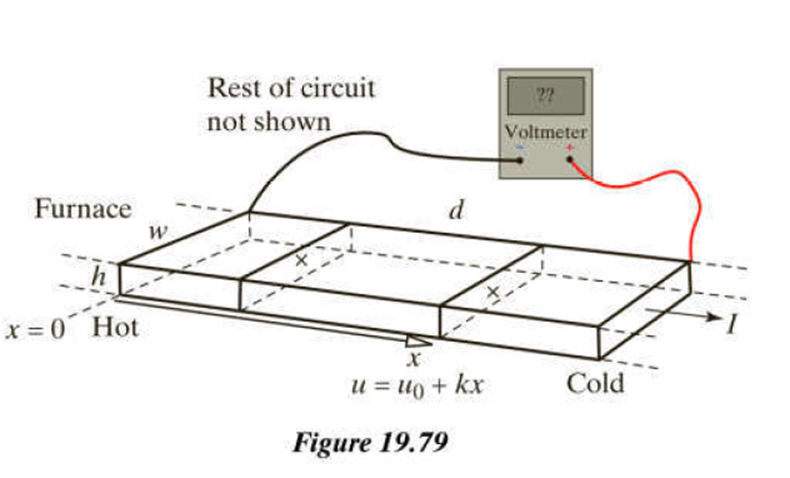

A long Iron slab of width w and height h emerges from a furnace, as shown in Figure 19.79. Because the end of the slab near the furnace is hot and the other end Is cold, the electron mobility increases significantly with the distance x. The electron mobility is u=u0+kxwhere u0is the mobility of the iron at the hot end of the slab. There are n iron atoms per cubic meter, and each atom contributes one electron to the sea of the mobile electron (we can neglect the small thermal expansion of the iron). A steady state conventional current runs through the slab from the hot end towards cold end, and an ammeter (not shown) measures the current to have a magnitude I in amperes. A voltmeter is connected to two locations a distance d apart, as shown. (a) Show the electric field inside the slab at two locations marked with 脳. Pay attention to the relative magnitudes of the two vectors that you draw. (b) Explain why the magnitude of the electric field is different at these two locations. (c) At a distance x from the left voltmeter connection, what is the magnitude of the electric field in terms x and the given quantities w,h,d,u0,k,l, and n ( and fundamental constants)? (d) What is the sign of potential difference displayed on the voltmeter? Explain briefly. (e) In terms of the given quantitiesw,h,d,u0,k,l, and n and ( and fundamental constants), what is the magnitude of the voltmeter reading? Check your work. (f) What is the resistance of this length of the iron slab?
