Chapter 4: Q4.6-35PE (page 163)

A nurse pushes a cart by exerting a force on the handle at a downward angle 35.0潞 below the horizontal. The loaded cart has a mass of 28.0 kg, and the force of friction is 60.0 N.

(a) Draw a free-body diagram for the system of interest.

(b) What force must the nurse exert to move at a constant velocity?

Short Answer

Expert verified

(b) The force exerted by the nurse is 73.26 N.

Step by step solution

01

Given data

  • Angle below the horizontal = 35.0潞.
  • The loaded cart鈥檚 mass = 28.0 kg.
  • the force of friction = 60.0 N.
02

(a) The free-body diagram showing the forces involve

Here, F is the force exerted on the cart, f is the force of friction, and W is the weight of the cart.

03

(b) Determine the force exerted by the nurse on the cart

To move at a constant velocity, the sum of the forces in the x-direction must be zero as:

鈭�Fx=0Fcos35掳鈭�f=0F=fcos35掳

Substitute 60 N for f in the above expression, and we get,

F=60鈥凬cos35掳=60鈥凬0.819=73.26鈥凬

Hence, the force exerted by the nurse is 73.26 N.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In a traction setup for a broken bone, with pulleys and rope available, how might we be able to increase the force along the femur using the same weight? (See Figure 4.30.) (Note that the femur is the shin bone shown in this image.

(a) What is the strength of the weak nuclear force relative to the strong nuclear force?

(b) What is the strength of the weak nuclear force relative to the electromagnetic force?

Since the weak nuclear force acts at only very short distances, such as inside nuclei, where the strong and electromagnetic forces also act, it might seem surprising that we have any knowledge of it at all. We have such knowledge because the weak nuclear force is responsible for beta decay, a type of nuclear decay not explained by other forces.

(a) Calculate the tension in a vertical strand of spider web if a spider of mass 8.00脳10鈭�5 kg hangs motionless on it.

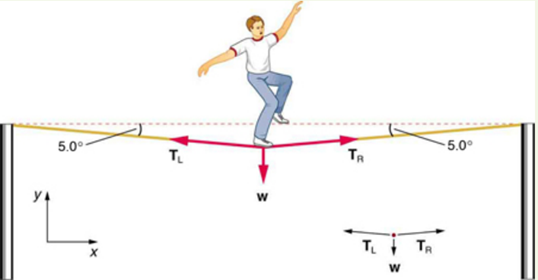

(b) Calculate the tension in a horizontal strand of spider web if the same spider sits motionless in the middle of it, much like the tightrope walker in Figure 4.17. The strand sags at an angle of 12潞 below the horizontal. Compare this with the tension in the vertical strand (find their ratio).
