Integrated Concepts When starting a foot race, a 70.0-kg sprinter exerts an average force of 650 N backward on the ground for 0.800 s.

(a) What is his final speed?

(b) How far does he travel?

Short Answer

Expert verified

(a) The final speed of the sprinter is 7.43 m/s.

(b) The distance traveled by the sprinter is 2.97 m.

Step by step solution

01

Step 1:Given Data

  • Mass of the sprinter = 70 kg.
  • Time the force exerted = 0.800 s.
  • Force exerted = 650 N.
02

Determine the acceleration of the sprinter

Apply Newton’s Second Law of motion as:

F=ma

Here, m is the mass of the sprinter, a is the acceleration, and F is the force exerted.

Substitute 70 kg for m and 650 N for F in the above expression, and we get,

650 N=70 k²µÃ—aa=650 k²µâ‹…m/s270 k²µa=9.286 m/²õ2

03

(a) Determine the final speed of the sprinter.

Apply the equation of motion as:

v=u+at

Here, v is the final speed, u is the initial speed, and t is the time taken.

Substitute 0 m/s for u, 9.286 m/s2for a, and 0.8 s fortin the above equation, and we get,

v=0+9.286 m/²õ2×0.8 s=7.43 m/²õ

Hence, the final speed of the sprinter is 7.43 m/s.

04

(b) Determine the distance traveled by the sprinter

Apply the equation of motion as:

s=ut+12at2

Here, s is the distance traveled.

Substitute 0 m/s for u, 9.286 m/s2for a, and 0.8 s for t.

s=0+12×9.286 m/²õ2×0.82 s2=12×9.286 m/²õ2×0.64 s2=12×5.94 m=2.97 m

Hence, the distance traveled by the sprinter is 2.97 m.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

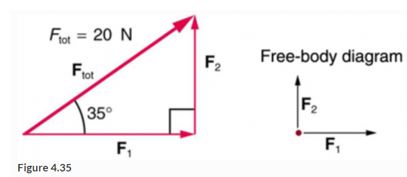

(a) Find the magnitudes of the forces F1 and F2 that add to give the total force Ftot shown in Figure 4.35. This may be done either graphically or by using trigonometry.

(b) Show graphically that the same total force is obtained independent of the order of addition of F1and F2 .

(c) Find the direction and magnitude of some other pair of vectors that add to give Ftot . Draw these to scale on the same drawing used in part (b) or a similar picture.

(a) Calculate the tension in a vertical strand of spider web if a spider of mass 8.00×10−5 kg hangs motionless on it.

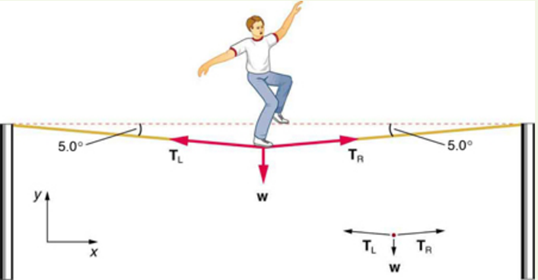

(b) Calculate the tension in a horizontal strand of spider web if the same spider sits motionless in the middle of it, much like the tightrope walker in Figure 4.17. The strand sags at an angle of 12º below the horizontal. Compare this with the tension in the vertical strand (find their ratio).

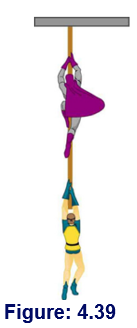

Figure 4.39 shows Superhero and Trusty Sidekick hanging motionless from a rope. Superhero’s mass is 90.0 kg, while Trusty Sidekick’s is 55.0 kg, and the mass of the rope is negligible.

(a) Draw a free-body diagram of the situation showing all forces acting on Superhero, Trusty Sidekick, and the rope.

(b) Find the tension in the rope above Superhero.

(c) Find the tension in the rope between Superhero and Trusty Sidekick. Indicate on your free-body diagram the system of interest used to solve each part.

What is the ratio of the strength of the strong nuclear force to that of the electromagnetic force? Based on this ratio, you might expect that the strong force dominates the nucleus, which is true for small nuclei. Large nuclei, however, have sizes greater than the range of the strong nuclear force. At these sizes, the electromagnetic force begins to affect nuclear stability. These facts will be used to explain nuclear fusion and fission later in this text.

An American football lineman reasons that it is senseless to try to out-push the opposing player, since no matter how hard he pushes he will experience an equal and opposite force from the other player. Use Newton’s laws and draw a free-body diagram of an appropriate system to explain how he can still out-push the opposition if he is strong enough.
