Suppose the mass of a fully loaded module in which astronauts take off from the Moon is 10,000 kg. The thrust of its engines is 30,000 N.

(a) Calculate its the magnitude of acceleration in a vertical takeoff from the Moon.

(b) Could it lift off from Earth? If not, why not? If it could, calculate the magnitude of its acceleration.

Short Answer

Expert verified

(a) The magnitude of the acceleration is 1.33 m/s2.

(b) The module will not take off from Earth because of the value of FT<W.

Step by step solution

01

 Step 1: Given Data

  • Thrust force = 30000 N.
  • Mass of the module=10000 kg.
02

(a) Determine the magnitude of acceleration during takeoff from the Moon

Apply Newton’s second law of motion,

\(\begin{array}{c}{F_T} - w = ma\\a = \frac{{{F_T} - w}}{m}\\a = \frac{{{F_T} - m{g_{Moon}}}}{m}\\a = \frac{{{F_T}}}{m} - {g_{Moon}}\end{array}\)

Here,FTis the thrust force, gMoon is the acceleration due to gravity on Moon, m is the mass of the module, and a is the acceleration.

Substitute 10000 kg for m and 1.67 m/s2 for gMoon, and 30000 N forFT, and we get,

\(\begin{array}{c}a = \frac{{30000\;{\rm{N}}}}{{10000\;{\rm{kg}}}} - 1.67\;{\rm{m/}}{{\rm{s}}^{\rm{2}}}\\ = \frac{{30000\;{\rm{kg}} \cdot {\rm{m/}}{{\rm{s}}^{\rm{2}}}}}{{{\rm{10000}}\;{\rm{kg}}}} - 1.67\;{\rm{m/}}{{\rm{s}}^{\rm{2}}}\\ = \left( {3 - 1.67} \right)\;{\rm{m/}}{{\rm{s}}^{\rm{2}}}\\ = 1.33\;{\rm{m/}}{{\rm{s}}^{\rm{2}}}\end{array}\)

Hence, the magnitude of the acceleration is 1.33 m/s2.

03

Step 3:(b) Determine whether the module would take off from Earth

Calculate the weight of the module on Earth,

\(W = m{g_{{\rm{Earth}}}}\)

Here, W is the weight of the module, and gEarth is the acceleration due to gravity on Earth.

Substitute 10000 kg for m and 9.8 m/s2 for g in the above equation, and we get,

\(\begin{array}{c}W = 10000\;{\rm{kg}} \times 9.8\;{\rm{m/}}{{\rm{s}}^{\rm{2}}}\\ = 98000\;{\rm{N}}\end{array}\)

Since the value of FT is less than that of W; hence, the module will not take off from the Earth.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

(a) Calculate the tension in a vertical strand of spider web if a spider of mass 8.00×10−5 kg hangs motionless on it.

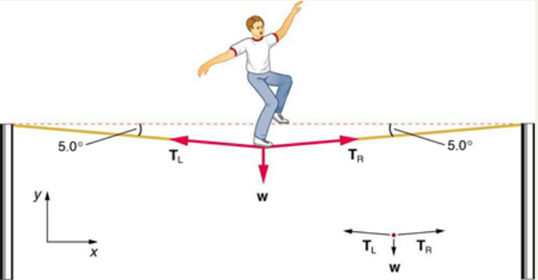

(b) Calculate the tension in a horizontal strand of spider web if the same spider sits motionless in the middle of it, much like the tightrope walker in Figure 4.17. The strand sags at an angle of 12º below the horizontal. Compare this with the tension in the vertical strand (find their ratio).

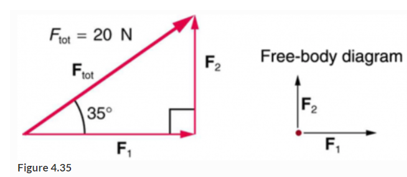

(a) Find the magnitudes of the forces F1 and F2 that add to give the total force Ftot shown in Figure 4.35. This may be done either graphically or by using trigonometry.

(b) Show graphically that the same total force is obtained independent of the order of addition of F1and F2 .

(c) Find the direction and magnitude of some other pair of vectors that add to give Ftot . Draw these to scale on the same drawing used in part (b) or a similar picture.

If a constant, nonzero force is applied to an object, what can you say about the velocity and acceleration of the object?

(a) What is the strength of the weak nuclear force relative to the strong nuclear force?

(b) What is the strength of the weak nuclear force relative to the electromagnetic force?

Since the weak nuclear force acts at only very short distances, such as inside nuclei, where the strong and electromagnetic forces also act, it might seem surprising that we have any knowledge of it at all. We have such knowledge because the weak nuclear force is responsible for beta decay, a type of nuclear decay not explained by other forces.

In a traction setup for a broken bone, with pulleys and rope available, how might we be able to increase the force along the femur using the same weight? (See Figure 4.30.) (Note that the femur is the shin bone shown in this image.
