Chapter 16: Q8E (page 689)

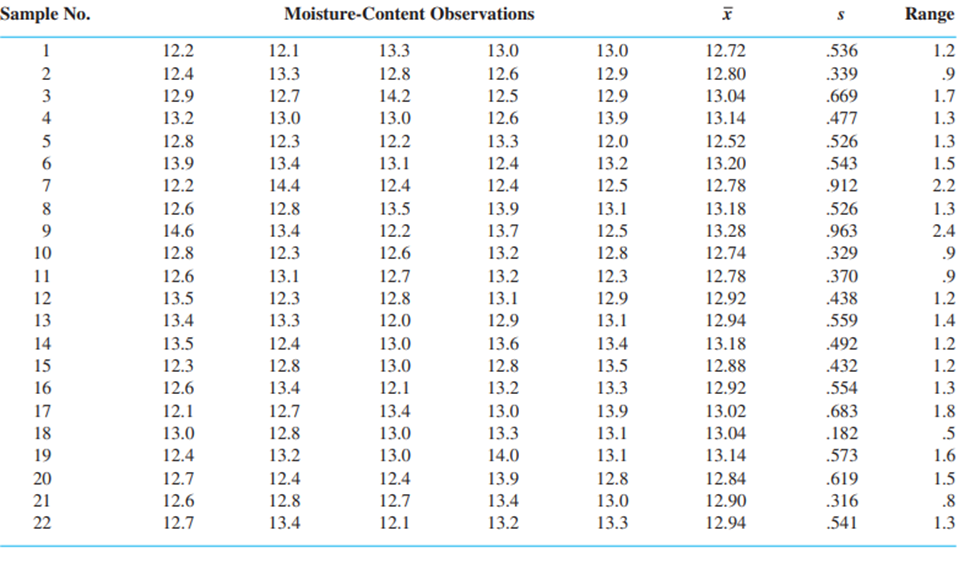

The table below gives data on moisture content for specimens of a certain type of fabric. Determine control limits for a chart with center line at height\(13.00\)based on\(\sigma = .600\), construct the control chart, and comment on its appearance.

Short Answer

Expert verified

The process is in control.

Step by step solution

01

Lower and upper limit

From

\(\begin{aligned}{l}LCL = {\rm{ lower control limit }} = \mu - 3 \cdot \frac{\sigma }{{\sqrt n }};\\UCL = {\rm{ upper control limit }} = \mu + 3 \cdot \frac{\sigma }{{\sqrt n }}\end{aligned}\)

we have

\(\begin{aligned}{l}LCL = {\rm{ lower control limit }} = 13 - 3 \cdot \frac{{0.6}}{{\sqrt 5 }} = 12.2\\UCL = {\rm{ upper control limit }} = 13 + 3 \cdot \frac{{0.6}}{{\sqrt 5 }} = 13.8\end{aligned}\)

02

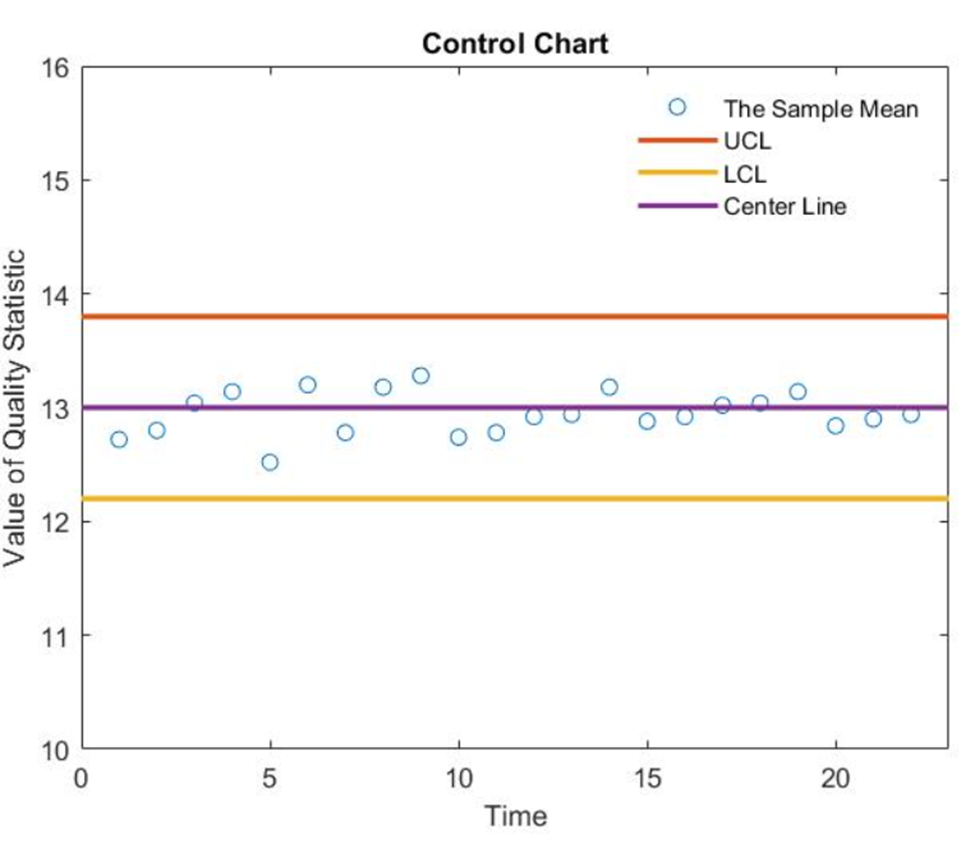

Plot the chart

From the control chart, we can notice that all \(22\) values \(\bar x\) are within the limits, so the process is in control with respect to location.
