Chapter 2: Q80E (page 90)

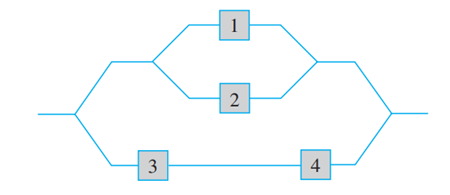

Consider the system of components connected as in the accompanying picture. Components \({\rm{1}}\) and \({\rm{2}}\) are connected in parallel, so that subsystem works iff either 1 or 2 works; since \({\rm{3}}\)and\({\rm{4}}\) are connected in series, that subsystem works iff both\({\rm{3}}\)and\({\rm{4}}\)work. If components work independently of one another and P(component i works) \({\rm{ = }}{\rm{.9}}\)for \({\rm{i = }}{\rm{.1,2}}\)and \({\rm{ = }}{\rm{.8}}\)for \({\rm{i = 3,4}}\),calculate P(system works).

Short Answer

Expert verified

The system works is \(\begin{array}{c}{\rm{P( system works ) = 0}}{\rm{.9964}}\\{\rm{ = 99}}{\rm{.64\% }}\end{array}\)

Step by step solution

01

Definition of Independence

Independence If the probability of one event is unaffected by the occurrence or non-occurrence of the other, two events are said to be independent in probability. Consider the following example for a better understanding of this definition.

02

Given parameters

Given: Five valves

\(\begin{array}{l}{\rm{P( component 1 works ) = 0}}{\rm{.9}}\\{\rm{P( component 2 works ) = 0}}{\rm{.9}}\\{\rm{P( component 3 works ) = 0}}{\rm{.8}}\\{\rm{P( component 4 works ) = 0}}{\rm{.8}}\end{array}\)

The components are self-contained.

03

Finding the system works

For independent events, use the following multiplication rule:

\({\rm{P(A and B) = P(A)*P(B)}}\)

For any two events, the following is the general addition rule:

\({\rm{P(A or B) = P(A) + P(B) - P(A and B)}}\)

Use the multiplication rule for independent events:

\({\rm{P( component 1 and 2 work ) = P( component 1 works )*P( component 2 works )}}\)\({\rm{ = 0}}{\rm{.9*0}}{\rm{.9 = 0}}{\rm{.81}}\)

If component \({\rm{1}}\)or component \({\rm{2}}\)work, the top subsystem will also work. For any two occurrences, apply the general addition rule:

\({\rm{P}}\left( {{\rm{top sub system works }}} \right){\rm{ = P( component\;works ) + P( component\;works ) - P(component\;andwork )}}\)\({\rm{ = 0}}{\rm{.9 + 0}}{\rm{.9 - 0}}{\rm{.81 = 0}}{\rm{.99}}\)

If both components \({\rm{3}}\) and \({\rm{4}}\)are operational, the bottom subsystem will function. For independent events, use the multiplication rule:

04

Explanation of the solution

\({\rm{P}}\left( {{\rm{bottom subsystem works }}} \right){\rm{ = P( component\;works )*P( component\;works)}}\)\({\rm{ = 0}}{\rm{.8*0}}{\rm{.8 = 0}}{\rm{.64}}\)

The two subsystems are independent, because each component is independent. Use the multiplication rule for independent events:

\({\rm{P}}\left( {{\rm{both subsystems work}}} \right){\rm{ = P}}\left( {{\rm{top subsystem works}}} \right){\rm{* P}}\left( {{\rm{bottom subsystem works}}} \right)\)\({\rm{ = 0}}{\rm{.99*0}}{\rm{.64 = 0}}{\rm{.6336}}\)

The system will then work if either the top subsystem works or the bottom subsystem works. Use the general addition rule for any two events:

\({\rm{P}}\left( {{\rm{system works}}} \right){\rm{ = P}}\left( {{\rm{top subsystem works}}} \right){\rm{ + P}}\left( {{\rm{bottom subsystem works}}} \right)\)

\(\begin{array}{c}{\rm{ = 0}}{\rm{.99 + 0}}{\rm{.64 - 0}}{\rm{.6336}}\\{\rm{ = 0}}{\rm{.9964 = 99}}{\rm{.64\% }}\end{array}\)

Therefore,The system works is \(\begin{array}{c}{\rm{P( system works ) = 0}}{\rm{.9964}}\\{\rm{ = 99}}{\rm{.64\% }}\end{array}\)
