Chapter 2: Q19E (page 65)

Human visual inspection of solder joints on printed circuit boards can be very subjective. Part of the problem stems from the numerous types of solder defects (e.g., pad non wetting, knee visibility, voids) and even the degree to which a joint possesses one or more of these defects. Consequently, even highly trained inspectors can disagree on the disposition of a particular joint. In one batch of 10,000 joints, inspector A found 724 that were judged defective, inspector B found 751 such joints, and 1159 of the joints were judged defective by at least one of the inspectors. Suppose that one of the 10,000 joints is randomly selected.

a. What is the probability that the selected joint was judged to be defective by neither of the two inspectors?

b. What is the probability that the selected joint was judged to be defective by inspector B but not by inspector A?

Short Answer

Expert verified

a. The probability that the selected joint was judged to be defective by neither of the two inspectors is 0.8841.

b. The probability that the selected joint was judged to be defective by inspector B but not by inspector A is 0.0435.

Step by step solution

01

Given information

The number of joints randomly selected is 10000.

The number of defective joints found by inspector A is 724.

The number of defective joints found by inspector B is 751.

The number of defective joints that were found by at least one of the inspectors is 1159.

02

Compute the probability

Let A be the event that the number of defective joints is found by inspector A.

Let B be the event that the number of defective joints is found by inspector B.

The event \(A \cup B\) represents the event of number of defective joints that were found by at least one of the inspectors.

The probability of event A is computed as,

\(\begin{aligned}P\left( A \right) &= \frac{{724}}{{10000}}\\ &= 0.0724\end{aligned}\)

Therefore, the probability of event A is 0.0724.

The probability of event B is computed as,

\(\begin{aligned}P\left( B \right) &= \frac{{751}}{{10000}}\\ &= 0.0751\end{aligned}\)

Therefore, the probability of event B is 0.0751.

The probability of event \(A \cup B\) is computed as,

\(\begin{aligned}P\left( {A \cup B} \right) &= \frac{{1159}}{{10000}}\\ &= 0.1159\end{aligned}\)

Therefore, the probability of event \(A \cup B\) is 0.1159.

Using the formula for the probability of union of the two events,

\(P\left( {A \cup B} \right) = P\left( A \right) + P\left( B \right) - P\left( {A \cap B} \right)\)

The probability that the number of defective joints that were found by inspector A and inspector B is computed as,

\(\begin{aligned}P\left( {A \cap B} \right) &= P\left( A \right) + P\left( B \right) - P\left( {A \cup B} \right)\\ &= 0.0724 + 0.0751 - 0.1159\\ &= 0.0316\end{aligned}\)

Therefore, the probability that the number of defective joints that were found by inspector A and inspector B is 0.0316

a.

The probability that the selected joint was judged to be defective by neither of the two inspectors is computed as,

\(\begin{aligned}P\left( {A \cup B} \right)' &= 1 - P\left( {A \cup B} \right)\\ &= 1 - 0.1159\\ &= 0.8841\end{aligned}\)

Therefore, the probability that the selected joint was judged to be defective by neither of the two inspectors is 0.8841.

b.

The probability that the selected joint was judged to be defective by inspector B but not by inspector A is computed as,

\(\begin{aligned}P\left( {B \cup A'} \right) &= P\left( B \right) - P\left( {A \cap B} \right)\\ &= 0.0751 - 0.0316\\ &= 0.0435\end{aligned}\)

Therefore, the probability that the selected joint was judged to be defective by inspector B but not by inspector A is 0.0435

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

An individual is presented with three different glasses of cola, labeled C, D,and P.He is asked to taste all three and then list them in order of preference. Suppose the same cola has actually been put into all three glasses.

a. What are the simple events in this ranking experiment, and what probability would you assign to each one?

b. What is the probability that Cis ranked first?

c. What is the probability that Cis ranked first and Dis ranked last?

Consider randomly selecting a single individual and having that person test drive \({\rm{3}}\) different vehicles. Define events \({{\rm{A}}_{\rm{1}}}\), \({{\rm{A}}_{\rm{2}}}\), and \({{\rm{A}}_{\rm{3}}}\) by

\({{\rm{A}}_{\rm{1}}}\)=likes vehicle #\({\rm{1}}\)\({{\rm{A}}_{\rm{2}}}\)= likes vehicle #\({\rm{2}}\)\({{\rm{A}}_{\rm{3}}}\)=likes vehicle #\({\rm{3}}\)Suppose that\({\rm{ = }}{\rm{.65,}}\)\({\rm{P(}}{{\rm{A}}_3}{\rm{)}}\)\({\rm{ = }}{\rm{.70,}}\)\({\rm{P(}}{{\rm{A}}_{\rm{1}}} \cup {{\rm{A}}_{\rm{2}}}{\rm{) = }}{\rm{.80,P(}}{{\rm{A}}_{\rm{2}}} \cap {{\rm{A}}_{\rm{3}}}{\rm{) = 40,}}\)and\({\rm{P(}}{{\rm{A}}_{\rm{1}}} \cup {{\rm{A}}_{\rm{2}}} \cup {{\rm{A}}_{\rm{3}}}{\rm{) = }}{\rm{.88}}{\rm{.}}\)

a. What is the probability that the individual likes both vehicle #\({\rm{1}}\)and vehicle #\({\rm{2}}\)?

b. Determine and interpret\({\rm{p}}\)(\({{\rm{A}}_{\rm{2}}}\)|\({{\rm{A}}_{\rm{3}}}\)).

c. Are \({{\rm{A}}_{\rm{2}}}\)and \({{\rm{A}}_{\rm{3}}}\)independent events? Answer in two different ways.

d. If you learn that the individual did not like vehicle #\({\rm{1}}\), what now is the probability that he/she liked at least one of the other two vehicles?

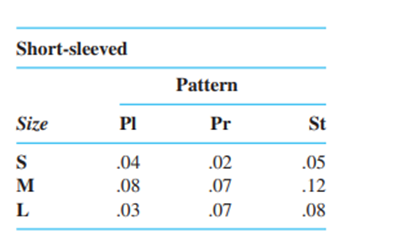

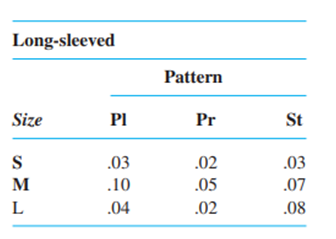

A department store sells sports shirts in three sizes (small, medium, and large), three patterns (plaid, print, and stripe), and two sleeve lengths (long and short). The accompanying tables give the proportions of shirts sold in the various category combinations.

a. What is the probability that the next shirt sold is a medium, long-sleeved, print shirt?

b. What is the probability that the next shirt sold is a medium print shirt?

c. What is the probability that the next shirt sold is a short-sleeved shirt? A long-sleeved shirt?

d. What is the probability that the size of the next shirt sold is the medium? That the pattern of the next shirt sold as a print?

e. Given that the shirt just sold was a short-sleeved plaid, what is the probability that its size was medium?

f. Given that the shirt just sold was a medium plaid, what is the probability that it was short-sleeved? Long-sleeved?

A family consisting of three persons鈥擜, B, and C鈥攇oes to a medical clinic that always has a doctor at each of stations 1, 2, and 3. During a certain week, each memberof the family visits the clinic once and is assigned at random to a station. The experiment consists of recording the station number for each member. One outcome is (1, 2, 1) for Ato station 1, Bto station 2, and Cto station 1.

a. List the 27 outcomes in the sample space.

b. List all outcomes in the event that all three members go to the same station.

c. List all outcomes in the event that all members go to different stations.

d. List all outcomes in the event that no one goes to station 2.

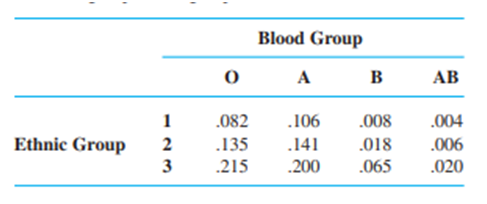

The population of a particular country consists of three ethnic groups. Each individual belongs to one of the four major blood groups. The accompanying joint probability table gives the proportions of individuals in the various ethnic group-blood group combinations.

Suppose that an individual is randomly selected from the population, and define events by \({\rm{A = }}\)\{type A selected), \({\rm{B = }}\) (type B selected), and \({\rm{C = }}\) (ethnic group \({\rm{3}}\) selected).

a. Calculate\({\rm{P(A),P(C)}}\), and \({\rm{P(A{C}C)}}\).

b. Calculate both \({\rm{P(A}}\mid {\rm{C)}}\)and \({\rm{P(C}}\mid {\rm{A)}}\), and explain in context what each of these probabilities represents.

c. If the selected individual does not have type B blood, what is the probability that he or she is from ethnic group\({\rm{1}}\)?
