Chapter 1: Q10E (page 24)

Consider the strength data for beams given in Example

1.2.

a. Construct a stem-and-leaf display of the data. What appears to be a representative strength value? Do the observations appear to be highly

concentrated about the representative value or rather spread out?

b. Does the display appear to be reasonably symmetric about a representative value, or would you describe its shape in some other way?

c. Do there appear to be any outlying strength values?

d. What proportion of strength observations in this sample exceeds 10 MPa?

Short Answer

Expert verified

a. The stem and leaf display for the provided scenario is,

Unit: 6|3=6.3 MPa.

b. The distribution is positively skewed.

c. There is no outlying strength value.

d. The proportion of strength observations in this sample that exceeds 10 MPa is 0.148.

Step by step solution

01

Given information

The strength data of the beams is provided as,

5.9

7.2

7.3

6.3

8.1

6.8

7.0

7.6

6.8

6.5

7.0

6.3

7.9

9.0

8.2

8.7

7.8

9.7

7.4

7.7

9.7

7.8

7.7

11.6

11.3

11.8

10.7

02

Construct a stem and leaf diagram and comment on the spread.

a.

A stem-and-leaf display provides a visual representation of the dataset.

The steps to construct a stem-and-leaf display are as follows,

1) Select the leading digit for the stem and trailing digits for the leaves.

2) Represent the stem digits vertically and similarly the trailing digits corresponding to the stem digits.

3) Mention the units for the display.

The stem and leaf display for the provided scenario is,

Unit: 6|3=6.3 MPa.

From the above display, it can be observed that the representative strength value; that is the middle value is 7.7.

The data does not appear to be highly concentrated about the representative value or rather spread out.

03

Describe the shape

b.

From the stem-and-leaf display, it can be interpreted that the observations are concentrated towards the right of the graph.

Therefore, thedistribution is positively skewed.

04

State the outliers

c.

From the above-represented display, it can be observed that there is no outlying strength value.

05

Compute the proportion of strength values that exceed 10 MPa

The number of strength values that exceed 10 MPa is 4.

The total number of observations is27.

The proportion of strength observations in this sample that exceeds 10 MPa is computed as,

\(\frac{4}{{27}} = 0.148\)

Thus, the proportion of strength observations in this sample that exceeds 10 MPa is 0.148.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The following data on distilled alcohol content (%) for a sample of 35 port wines was extracted from the article 鈥淎 Method for the Estimation of Alcohol in Fortified Wines Using Hydrometer Baum茅 and Refractometer Brix鈥� (Amer. J. Enol. Vitic., 2006:486鈥�490). Each value is an average of two duplicate measurements.

16.35 18.85 16.20 17.75 19.58 17.73 22.75 23.78 23.25
19.08 19.62 19.20 20.05 17.85 19.17 19.48 20.00 19.97
17.48 17.15 19.07 19.90 18.68 18.82 19.03 19.45 19.37
19.20 18.00 19.60 19.33 21.22 19.50 15.30 22.25

Use methods from this chapter, including a boxplot that
shows outliers, to describe and summarize the data.

Consider the following sample of observations on coating thickness for low-viscosity paint ("Achieving a Target Value for a Manufacturing Process: \({\rm{A}}\)Case Study, \({\rm{97}}\)J. of Quality Technology, \({\rm{1992:22 - 26}}\)):

\(\begin{array}{*{20}{r}}{{\rm{.83}}}&{{\rm{.88}}}&{{\rm{.88}}}&{{\rm{1}}{\rm{.04}}}&{{\rm{1}}{\rm{.09}}}&{{\rm{1}}{\rm{.12}}}&{{\rm{1}}{\rm{.29}}}&{{\rm{1}}{\rm{.31}}}\\{{\rm{1}}{\rm{.48}}}&{{\rm{1}}{\rm{.49}}}&{{\rm{1}}{\rm{.59}}}&{{\rm{1}}{\rm{.62}}}&{{\rm{1}}{\rm{.65}}}&{{\rm{1}}{\rm{.71}}}&{{\rm{1}}{\rm{.76}}}&{{\rm{1}}{\rm{.83}}}\end{array}\)

Assume that the distribution of counting thickness is normal (a normal probability plot strongly supports this assumption).

a. Calculate a point estimate of the mean value of coating thickness, and state which estimator you used.

b. Calculate a point estimate of the median of the coating thickness distribution, and state which estimator you used.

C. Calculate a point estimate of the value that separates the largest of\({\rm{10\% }}\) all values in the thickness distribution from the remaining \({\rm{90\% }}\)and state which estimator you used. (Hint Express what you are trying to estimate in terms of \({\rm{\mu }}\)and \({\rm{\sigma }}\)

d. Estimate \({\rm{P}}\left( {{\rm{X < 1}}{\rm{.5}}} \right){\rm{,}}\)i.e., the proportion of all thickness values less than 1.5. (Hint: If you knew the values of \({\rm{\mu }}\)and \({\rm{\sigma }}\), you could calculate this probability. These values are not available, but they can be estimated.)

e. What is the estimated standard error of the estimator that you used in part (b)?

Each customer making a particular Internet purchase must pay with one of three types of credit cards (think Visa, MasterCard, AmEx). Let \({{\rm{A}}_{\rm{i}}}{\rm{(i = 1,2,3)}}\) be the event that a type \({\rm{i}}\)credit card is used, with\({\rm{P}}\left( {{{\rm{A}}_{\rm{1}}}} \right){\rm{ = }}{\rm{.5}}\), \({\rm{P}}\left( {{{\rm{A}}_{\rm{2}}}} \right){\rm{ = }}{\rm{.3}}\), and\({\rm{P}}\left( {{{\rm{A}}_{\rm{3}}}} \right){\rm{ = }}{\rm{.2}}\). Suppose that the number of customers who make such a purchase on a given day is a Poisson \({\rm{rv}}\) with parameter\({\rm{\lambda }}\). Define \({\rm{rv}}\) 's \({{\rm{X}}_{{\rm{1,}}}}{{\rm{X}}_{\rm{2}}}{\rm{,}}{{\rm{X}}_{\rm{3}}}\)by \({{\rm{X}}_{\rm{i}}}{\rm{ = }}\)the number among the \({\rm{N}}\)customers who use a type \({\rm{i}}\)card\({\rm{(i = 1,2,3)}}\). Show that these three \({\rm{rv}}\) 's are independent with Poisson distributions having parameters\({\rm{.5\lambda ,}}{\rm{.3\lambda }}\), and\({\rm{.2\lambda }}\), respectively. (Hint: For non-negative integers\({{\rm{x}}_{\rm{1}}}{\rm{,}}{{\rm{x}}_{\rm{2}}}{\rm{,}}{{\rm{x}}_{\rm{3}}}\), let\({\rm{n = }}{{\rm{x}}_{\rm{1}}}{\rm{ + }}{{\rm{x}}_{\rm{2}}}{\rm{ + }}{{\rm{x}}_{\rm{3}}}\). Then\({\rm{P}}\left( {{{\rm{X}}_{\rm{1}}}{\rm{ = }}{{\rm{x}}_{\rm{1}}}} \right.\), \(\left. {{{\rm{X}}_{\rm{2}}}{\rm{ = }}{{\rm{x}}_{\rm{2}}}{\rm{,}}{{\rm{X}}_{\rm{3}}}{\rm{ = }}{{\rm{x}}_{\rm{3}}}} \right){\rm{ = P}}\left( {{{\rm{X}}_{\rm{1}}}{\rm{ = }}{{\rm{x}}_{\rm{1}}}{\rm{,}}{{\rm{X}}_{\rm{2}}}{\rm{ = }}{{\rm{x}}_{\rm{2}}}{\rm{,}}{{\rm{X}}_{\rm{3}}}{\rm{ = }}{{\rm{x}}_{\rm{3}}}{\rm{,N = n}}} \right)\) (why is this?). Now condition on\({\rm{N = n}}\), in which case the three \({\rm{Xi}}\) 's have a trinomial distribution (multinomial with three categories) with category probabilities\({\rm{.5,}}{\rm{.3}}\), and . \({\rm{2}}\).)

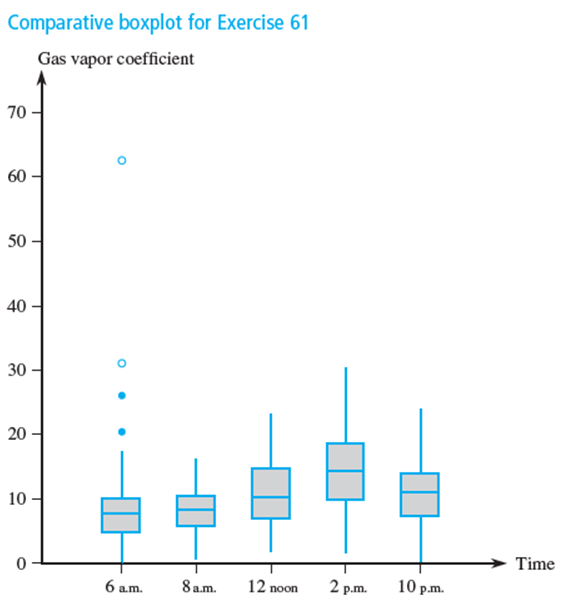

The accompanying comparative boxplot of gasoline vapor coefficients for vehicles in Detroit appeared in the article 鈥淩eceptor Modeling Approach to VOCEmission Inventory Validation鈥� (J. of Envir. Engr.,1995: 483鈥�490). Discuss any interesting features.
