A mechanical engineer wishes to compare strength properties of steel beams with similar beams made with a particular alloy. The same number of beams, \(n\), of each type will be tested. Each beam will be set in a horizontal position with a support on each end, a force of \(2500lb\) will be applied at the center, and the deflection will be measured. From past experience with such beams, the engineer is willing to assume that the true standard deviation of deflection for both types of beam is \(.05in\). Because the alloy is more expensive, the engineer wishes to test at level \(.01\) whether it has smaller average deflection than the steel beam. What value of n is appropriate if the desired type II error probability is \(.05\) when the difference in true average deflection favors the alloy by \(.04in\).?

Short Answer

Expert verified

the solution is

\(n = 50\)

Step by step solution

01

standard normal distribution

The null hypothesis is \({H_0}:{\mu _1} - {\mu _2} = 0\), \({\mu _2}\) with representing the true average of alloy and \({\mu _1}\)being the true average of steel beam. The type II error \(\beta \) for \({\mu _1} - {\mu _2} = {\Delta ^'}\) vary depending on the alternative hypothesis. The alternative hypothesis is \({H_a}:{\mu _1} - {\mu _2} > 0\) and \({\Delta ^'} = 0.4, \), which indicates that the type II error is present

\(\beta \left( {{\Delta ^'}} \right) = \Phi \left( {{z_\alpha } - \frac{{{\Delta ^'} - {\Delta _0}}}{\sigma }} \right)\)

Where

\(\sigma = \sqrt {\frac{{\sigma _1^2}}{m} + \frac{{\sigma _2^2}}{n}} \)

\({\sigma _1} = {\sigma _2} = 0.05\)and \(m = n\). The significance level is \(\alpha = 0.01,{z_\alpha } = {z_{0.01}} = 2.33\). Using the fact

\(\Phi (1.645) = 0.05\)

The following holds true, as determined by the table in the book's appendix.

\(\begin{array}{l}\beta \left( {{\Delta ^'}} \right) = \Phi \left( {{z_\alpha } - \frac{{{\Delta ^'} - {\Delta _0}}}{\sigma }} \right)\\0.05 = \Phi \left( {{z_\alpha } - \frac{{{\Delta ^'} - {\Delta _0}}}{\sigma }} \right) and 0.05 = \Phi (1.645)\\\Phi (1.645) = \Phi \left( {{z_\alpha } - \frac{{{\Delta ^'} - {\Delta _0}}}{\sigma }} \right)\end{array}\)

The following is true because \(\Phi \) is a cdf of standard normal distribution.

\(\begin{array}{l}{z_\alpha } - \frac{{{\Delta ^'} - {\Delta _0}}}{\sigma } = 1.645\\2.33 - \frac{{0.04 - 0}}{\sigma } = 1.28\\{\sigma ^2} = \frac{{0.0{4^2}}}{{{{(1.645 + 2.33)}^2}}}\end{array}\)

02

find n value

remember that

\(\sigma = \sqrt {\frac{{\sigma _1^2}}{m} + \frac{{\sigma _2^2}}{n}} ,\)

and

\({\sigma ^2} = \frac{{\sigma _1^2}}{m} + \frac{{\sigma _2^2}}{n} = \frac{{0.0{5^2}}}{n} + \frac{{0.0{5^2}}}{n} = \frac{{0.0025 + 0.0025}}{n}\)

by substituting this, the following is true

\(\begin{array}{l}\frac{{0.0025 + 0.0025}}{n} = \frac{{0.0016}}{{{{(1.645 + 2.33)}^2}}}\\n = \frac{{(0.0025 + 0.0025) \times {{(2.33 + 1.645)}^2}}}{{0.0016}}\\n = 49.38\end{array}\)

However, because \(n\) must be an integer number (sample size), the required value of \(n\) is

\(n = 50\)

03

conclusion

\(n = 50\)

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The accompanying summary data on total cholesterol level (mmol/l) was obtained from a sample of Asian postmenopausal women who were vegans and another sample of such women who were omnivores (鈥淰egetarianism, Bone Loss, and Vitamin D: A Longitudinal Study in Asian Vegans and Non-Vegans,鈥 European J. of Clinical Nutr., 2012: 75鈥82)

Diet sample sample sample

Size mean SD

\(\overline {\underline {\begin{array}{*{20}{l}}{ Vegan }&{88}&{5.10}&{1.07}\\{ Omnivore }&{93}&{5.55}&{1.10}\\{}&{}&{}&{}\end{array}} } \)

Calculate and interpret a \(99\% \) \(CI\) for the difference between population mean total cholesterol level for vegans and population mean total cholesterol level for omnivores (the cited article included a \(95\% \)\(CI\)). (Note: The article described a more sophisticated statistical analysis for investigating bone density loss taking into account other characteristics (鈥渃ovariates鈥) such as age, body weight, and various nutritional factors; the resulting CI included 0, suggesting no diet effect.

The article "Evaluating Variability in Filling Operations" (Food Tech., 1984: 51-55) describes two different filling operations used in a ground-beef packing plant. Both filling operations were set to fill packages with \(1400\;g\)of ground beef. In a random sample of size 30 taken from each filling operation, the resulting means and standard deviations were \(1402.24\;g\) and \(10.97\;g\) for operation 1 and \(1419.63\;g\) and \(9.96\;g\) for operation 2.

a. Using a .05 significance level, is there sufficient evidence to indicate that the true mean weight of the packages differs for the two operations?

b. Does the data from operation 1 suggest that the true mean weight of packages produced by operation 1 is higher than\(1400\;g\)? Use a \(.05\)significance level.

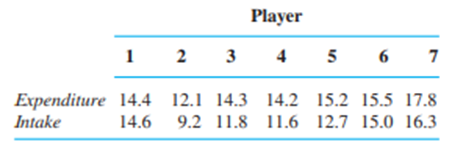

How does energy intake compare to energy expenditure? One aspect of this issue was considered in the article 鈥淢easurement of Total Energy Expenditure by the Doubly Labelled Water Method in Professional Soccer Players鈥 (J. of Sports Sciences, 2002: 391鈥397), which contained the accompanying data (MJ/day).
