Chapter 27: Q16P (page 1200)

a. Draw a short segment of nylon 4.

b. Draw a short segment of nylon 44.

Short Answer

Expert verified

a. The short segment of nylon-4 is given below.

b. The short segment of nylon-44 is given below.

Step by step solution

01

Nylon-4

Nylon 4 comes under the category of polyamides. Several applications utilize polyamides. Its corrosion resistance character makes it employed in refineries and wastewater treatment plants.

02

Drawing short segments of nylon 4 and nylon 44

a. Nylon-4 is a polymer of 4-aminobutanoic acid.

The reaction between two molecules of 4-aminobutamoic acid is given below.

The reaction between two molecules of 4-aminobutamoic acid

Hence, the short segment of nylon 4 is given below.

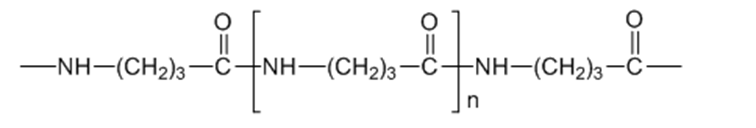

A short segment of nylon 4

b. Nylon-44 can be prepared by two different bifunctional monomers. The two different monomers are given below.

Monomers of nylon 44

The reaction between these monomers, butane-1,4-diamine and succinic acid is given below.

The reaction between the monomers

The molecule obtained above reacts n times to obtain the repeating unit of nylon 44. The reaction is given below.

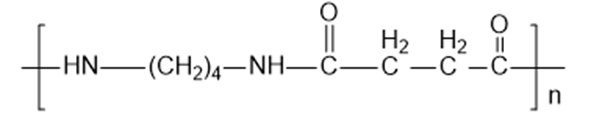

Repeating unit of nylon-44

The short segment of nylon-44 is given below.

A short segment of nylon-44

The short segment of nylon-4 and nylon-44 are drawn.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

What happens to polyester slacks if aqueous NaOH is spilled on them?

Draw a segment of a polymer (containing three monomers) that forms from the anionic polymerization of the compound shown below.

What monomer would you use to form each of the following polymers?

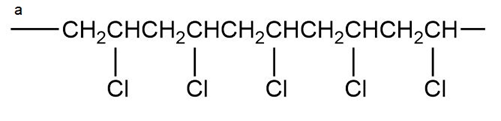

Show the mechanism for the formation of a segment of poly(vinyl chloride) that contains three units of vinyl chloride and is initiated by hydrogen peroxide.

Bakelite, a durable plastic used for the casing of early radios and TVs, was the first of the thermosetting polymers. It is a highly cross-linked polymer formed from the acid-catalyzed polymerization of phenol and formaldehyde. Because it is much darker than Melmac, Bakelite鈥檚 range of colors is limited. Propose a structure for Bakelite.
