One end of a horizontal spring with force constant 76.0 N/m is attached to a vertical post. A 2.00 - kg block of frictionless ice is attached to the other end and rests on the floor. The spring is initially neither stretched nor compressed. A constant horizontal force of 54.0 N is then applied to the block, in the direction away from the post. (a) What is the speed of the block when the spring is stretched 0.400 m ? (b) At that instant, what are the magnitude and direction of the acceleration of the block?

Short Answer

Expert verified
  1. The speed of the block is 3.94 m/s .
  2. The direction of the acceleration is away from the post and the magnitude of the acceleration is 11.8m/s2.

Horizontal spring executes simple harmonic motion. When the mass M passes through its mean position, an object of mass m is put on it and the two move together.

Step by step solution

01

Given data

Force constant = 76.0 N

Block = 2.00 kg

Constant horizontal force = 54.0 N

02

(a)Find the speed of the block

The work-energy theorem when applied on the block is,

Wtot=K2-K1WF+Wspring=12mv'2-12mv2Fx+-12kx2=12mv'2-12mv2

Substitute 9.8m/s2for g , 2.00 kg for m , 76.0 N for k , 54.0 N for F , 0.400 m for x , and 0 m/s for v.

54.0N0.400m-1276.0N/m0.400m2v'=54.0N0.400m-1276.0N/m0.400m2122.00kgv'=3.94m/s

Hence, the speed of the block is 3.94 m/s

03

(b) Find the magnitude and direction of the acceleration of the block

With the assumption that a positive direction is away from the post, Newton’s second law gives,

F-Fspring=maF-kx=ma

Here, a is the acceleration of the block.

Substitute 9.8m/s2forg,2.00kgform,76.0Nfork,54.0NforF,0.400mforx

a=54.0N-76.09N/m×0.400m=2.00kga2.00kga=11.8m/s2

The positive sign indicates that the direction of acceleration is away from the post.

Hence, the direction of the acceleration is away from the post, and the magnitude of the acceleration is 11.8m/s2.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The density of gold is 19.3 g/cm3 . What is this value in kilograms per cubic meter?

Neutron stars, such as the one at the center of the Crab Nebula, have about the same mass as our sun but have a much smaller diameter. If you weigh 675Non the earth, what would you weigh at the surface of a neutron star that has the same mass as our sun and a diameter of 20km?

You are given two vectors A→=−3.00i^+6.00j^andB→=7.00i^+2.00j^ . Let counter- clockwise angles be positive. (a) What angle doesA→ make with the +x-axis? (b) What angle doeslocalid="1662185215101" B→ make with the +x-axis? (c) Vectorlocalid="1662185222673" C→ is the sum of localid="1662185243350" A→andlocalid="1662185251585" B→ , so localid="1662185235469" C→=A→+B→What angle does localid="1662185258976" C→make with the +x-axis?

A hammer with mass m is dropped from rest from a height h above the earth’s surface. This height is not necessarily small compared with the radiusof the earth. Ignoring air resistance, derive an expression for the speed v of the hammer when it reaches the earth’s surface. Your expression should involve h,, and(the earth’s mass).

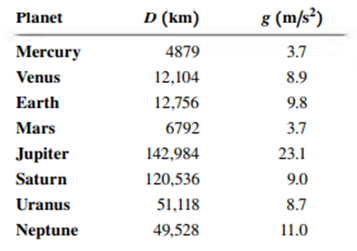

For a spherical planet with mass M, volume V, and radius R,derive an expression for the acceleration due to gravity at the planet’s surface, g, in terms of the average density of the planet, ÒÏ=M/V, and the planet’s diameter, D=2R. The table gives the values of Dand gfor the eight major planets:
