Two stationary point charges +3.00 nC and +2.00 nC are separated by a distance of 50.0 cm. An electron is released from rest at a point midway between the two charges and moves along the line connecting the two charges. What is the speed of the electron when it is 10.0 cm from the +3.00 nC charge?

Short Answer

Expert verified

The speed of an electron when it is 10 cm away from q1 is 6.89 x 106 m/s.

Step by step solution

01

Given Data and concept

Mass of electron, me = 9.11 × 10-31 kg.

Charge on electron, qe = -1.60 ×10-19 C.

Stationary charge 1, q1 = 3.00 × 10-9 C.

Stational charge 2, q2 = 2.00 × 10-9 C.

ri = 0.250 m

r1f = 0.100 m

r2f = 0.400 m

The Law of energy conservation tells us that the total energy of a system is always conserved . It can not be gained or lost. It can change forms.

02

Determination of the speed of the electron

Initially, the charges are at the stationary position, so net initial energy is given by,

Ei=Ui+Ki=14πε0qeq1ri+qeq2ri+0=14πε0-1.6×10-193×10-90.250+-1.6×10-192×10-90250=-2.88×10-17J

Finally, the charge starts moving with a velocity, so net final energy is given by,

Ef=Uf+Kf=14πε0qeq1r1f+qeq2r2f+12mevf2=14πε0-1.6×10-193×10-90.100+-1.6×10-192×10-90.400+12mevf2=-5.04×10-17J+12mevf2

Here, vf is the velocity of the electron.

By Law of conservation of energy,

Ei=EfUi+Ki=Uf+kf-2.80×10-17=-5.04×10-17+12mevf2vf=2-2.88×10-17+5.04×10-179.11×10-31vf=6.89×106m/s

Therefore, the speed of an electron when it is 10 cm away from q1 is 6.89106 m/s.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A parallel-plate capacitor is connected to a power supply that maintains a fixed potential difference between the plates. (a) If a sheet of dielectric is then slid between the plates, what happens to (i) the electric field between the plates, (ii) the magnitude of charge on each plate, and (iii) the energy stored in the capacitor? (b) Now suppose that before the dielectric is inserted, the charged capacitor is disconnected from the power supply. In this case, what happens to (i) the electric field between the plates, (ii) the magnitude of charge on each plate, and (iii) the energy stored in the capacitor? Explain any differences between the two situations.

CALC The region between two concentric conducting spheres with radii and is filled with a conducting material with resistivity ÒÏ. (a) Show that the resistance between the spheres is given by

R=ÒÏ4Ï€(1a-1b)

(b) Derive an expression for the current density as a function of radius, in terms of the potential differenceVab between the spheres. (c) Show that the result in part (a) reduces to Eq. (25.10) when the separation L=b-abetween the spheres is small.

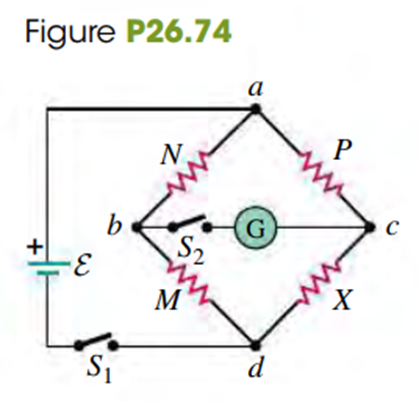

Question: The circuit shown in Fig. P26.74, called a Wheatstone Bridge, is used to determine the value of an unknown resistor X by comparison with three resistors M, N, and P whose resistances can be varied. For each setting, the resistance of each resistor is precisely known. With switches S1 and S2 closed, these resistors are varied until the current in the galvanometer G is zero; the bridge is then said to be balanced. (a) Show that under this condition the unknown resistance is given by X = MP/N. (This method permits very high precision in comparing resistors.) (b) If galvanometer G shows zero deflection when M = 850.0 Ω, N = 15.00 Ω, and P = 33.48 Ω, what is the unknown resistance X?

A parallel-plate air capacitor has a capacitance of 920 pF. The charge on each plate is 3.90 µC. (a) What is the potential difference between the plates? (b) If the charge is kept constant, what will be the potential difference if the plate separation is doubled? (c) How much work is required to double the separation?

In an electric trolley or bus system, the vehicle motor draws current from an overhead wire by means of a long arm with an attachment at the end that slides along the overhead wire. A brilliant electric spark is often seen when the attachment crosses a junction in the wires where contact is momentarily lost. Explain this phenomenon.
