Chapter 4: Q10DQ (page 840)

Electrons in an electric circuit pass through a resistor. The wire on either side of the resistor has the same diameter.(a) How does the drift speed of the electrons before entering the resistor compare to the speed after leaving the resistor? (b) How does the potential energy for an electron before entering the resistor compare to the potential energy after leaving the resistor? Explain your reasoning.

Short Answer

Expert verified

(a) The velocity is similar before entering and leaving.

(b) The potential energy is high during entering as compared to leaving.

Step by step solution

01

Definition of drift speed

The mean velocity obtained by charged electrons in a material owing to an electric field is known as drift velocity.

02

Determine the reasoning

(a) The drift velocity relation is

v鈬赌d=J鈬赌nq

Here, v鈬赌dis the drift velocity, J鈬赌is the current density, n is the number of electrons, and q is the charge of electron.

This relation all parameters are not changed in any condition.

Hence, the velocity is similar before entering and leaving.

(b) The two relations are

U=qV=eV

Here U, e, V is potential energy, the charge of an electron, and potential difference respectively. The potential difference is high during entering than leaving the resistor.

Hence, the potential energy is high during entering as compared to leaving.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

In the circuit shown in Fig. E26.20, the rate at which R1 is dissipating electrical energy is 15.0 W. (a) Find R1 and R2. (b) What is the emf of the battery? (c) Find the current through both R2 and the 10.0 惟 resistor. (d) Calculate the total electrical power consumption in all the resistors and the electrical power delivered by the battery. Show that your results are consistent with conservation of energy.

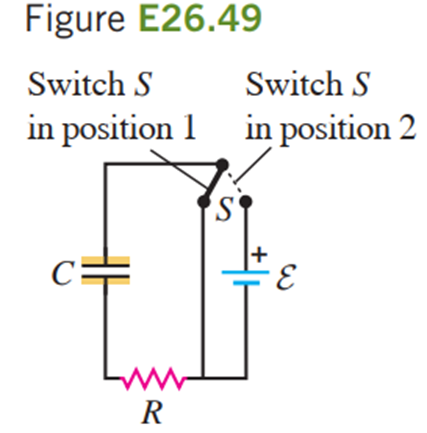

Question: In the circuit shown in Fig. E26.49, C = 5.90 mF, 詯 = 28.0 V, and the emf has negligible resistance. Initially, the capacitor is uncharged and the switch S is in position 1. The switch is then moved to position 2 so that the capacitor begins to charge. (a) What will be the charge on the capacitor a long time after S is moved to position 2? (b) After S has been in position 2 for 3.00 ms, the charge on the capacitor is measured to be 110 mC What is the value of the resistance R? (c) How long after S is moved to position 2 will the charge on the capacitor be equal to 99.0% of the final value found in part (a)?
