Chapter 4: Q16E (page 948)

A very long, straight horizontal wire carries a current such that8.2脳1018 electrons per second pass any given point going from west to east. What are the magnitude and direction of the magnetic field this wire produces at a point 4 cm directly above it?

Short Answer

Expert verified

The magnitude of magnetic field is6.56脳10-6T and the direction is North.

Step by step solution

01

Formula of magnetic field

The magnitude of the magnetic field due to a very long wire is given byB=渭0I2蟺谤 .

Magnitude of current can be found byI=Qt=Net .

02

Calculate the magnetic field

Given that8.2脳1018 electrons pass per second. Current can be found by

role="math" localid="1668234317908" I=NteI=8.2脳1018脳1.6脳10鈭�19I=1.312A

Use the formula of magnetic field to find the magnitude.

role="math" localid="1668234307776" B=渭0I2蟺rB=4蟺脳10鈭�7脳1.3122蟺脳4脳10鈭�2B=6.56脳10鈭�6T

The current points towards the left, so according to the left hand rule the direction of magnetic field at point above the wire is north.

So, the magnitude of magnetic field is6.56脳10-6T and the direction is North.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Question: A high voltage dc power line falls on a car, so the entire metal body of the car is at a potential of with respect to the ground. What happens to the occupants (a) when they are sitting in the car and (b) when they step out of the car? Explain your reasoning.

A 1.50-mcylindrical rod of diameter 0.500cmis connected to

a power supply that maintains a constant potential difference of 15.0Vacross

its ends, while an ammeter measures the current through it. You observe that

at room temperature (20.0鈭�C)the ammeter reads 18.5Awhile at 92.0鈭�Cit

reads 17.2A. You can ignore any thermal expansion of the rod. Find (a) the

resistivity at and (b) the temperature coefficient of resistivity at for the material of the rod.

A fuse is a device designed to break a circuit, usually by melting when the current exceeds a certain value. What characteristics should the material of the fuse have?

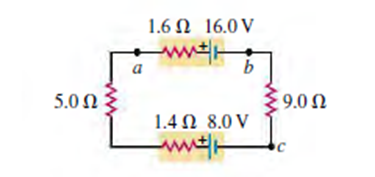

Consider the circuit of Fig. E25.30. (a)What is the total rate at which electrical energy is dissipated in the 5.0-鈩� and 9.0-鈩� resistors? (b) What is the power output of the 16.0-V battery? (c) At what rate is electrical energy being converted to other forms in the 8.0-V battery? (d) Show that the power output of the 16.0-V battery equals the overall rate of consumption of electrical energy in the rest of the circuit.
