Your artist friend is designing an exhibit inspired by circular-aperture diffraction. A pinhole in a red zone is going to be illuminated with a red laser beam of wavelength 670nm, while a pinhole in a violet zone is going to be illuminated with a violet laser beam of wavelength 410nm. She wants all the diffraction patterns seen on a distant screen to have the same size. For this to work, what must be the ratio of the red pinhole鈥檚 diameter to that of the violet pinhole?

Short Answer

Expert verified

Ratio of red pinhole diameter to violet pinhole ,DredDviolet=1.63

Step by step solution

01

Laser Beam

A laser beam is a single-wavelength stream of concentrated, coherent light.

02

Find ratio

In order for the diffraction patterns from the two pinholes to have the same size, the angle of the first minimum in the two patterns must be the same, where this angle is given by the following relation

胃1=1.22位D

When you multiply 胃1by the number of pinholes, you get

1.22位redDred=1.22位violetDviolet

rearranging the equations,

DredDviolet=位red位violet=670nm410nm=1.63

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Because sound is a wave, it's possible to make a diffraction grating for sound from a large board of sound-absorbing material with several parallel slits cut for sound to go through. When 10kHzsound waves pass through such a grating, listeners 10mfrom the grating report "loud spots" 1.4mon both sides of center. What is the spacing between the slits? Use 340msfor the speed of sound.

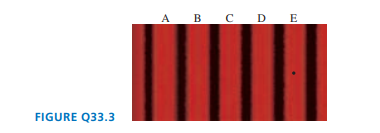

3. FIGURE Q33.3 shows the viewing screen in a double-slit experiment. FringeCis the central maximum. What will happen to the fringe spacing if
