Chapter 29: Q. 17 (page 831)

A 100Acurrent circulates around a 2.0mmdiameter superconducting ring.

a. What is the ring鈥檚 magnetic dipole moment?

b. What is the on-axis magnetic field strength 5.0cmfrom the ring?

Short Answer

Expert verified

a. The ring magnetic moment is 3.14脳10-4A.m2.

b. the magnetic field strength is0.5渭罢.

Step by step solution

01

Part (a) Step 1: Given information

We have given,

current = 100A

Diameter = 2mm

We have to find the magnetic dipole moment.

02

Simplify

The magnetic dipole moment of ring is

渭=AI渭=蟺谤2I渭=3.14脳10-6脳100渭=3.14脳10-4A.m2

03

Part (b) Step 1: Given information

We have given,

Distance = 5cm

We have to find the magnetic field strength.

04

Simplify

Magnetic field due to dipole is

B=渭0渭鈫�2蟺搁3B=(4蟺脳10-7)(3.14脳10-4)2蟺(5脳10-2)3B=0.5渭罢

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

What are the strength and direction of the magnetic field at point P in FIGURE P29.46?

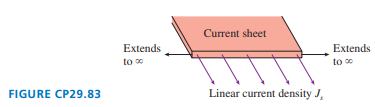

An infinitely wide flat sheet of charge flows out of the page in FIGURE CP29.83. The current per unit width along the sheet (amps per meter) is given by the linear current density Js. a. What is the shape of the magnetic field? To answer this question, you may find it helpful to approximate the current sheet as many parallel, closely spaced current-carrying wires. Give your answer as a picture showing magnetic field vectors. b. Find the magnetic field strength at distance d above or below the current sheet.
