The Electric field charge is

$E=\frac{1}{4蟺{蔚}_0}\frac{q}{r^2}$

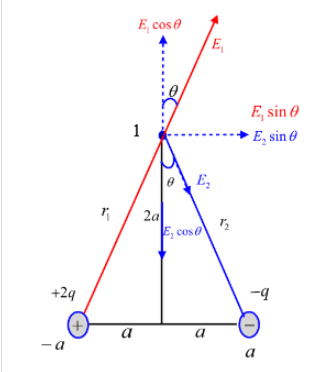

The following diagram depicts the electromagnetic lines at node one due to these two charges, which can be used to compute the electric field.

Charge from node one as

$\begin{array}{l}{r}_1^2=a^2+(2a{)}^2\\ r_1^2=a^2+4a^2\\ r_1^2=5a^2\end{array}$

The distance from charge $-q$is

$\begin{array}{l}{r}_2^2=a^2+(2a{)}^2\\ r_2^2=a^2+4a^2\\ r_2^2=5a^2\end{array}$

The value of sine angle is

$\begin{array}{l}\sin 鈦�胃=\frac{a}{r_2}\\ \sin 鈦�胃=\frac{a}{a\sqrt{5}}\\ \sin 鈦�胃=\frac{1}{\sqrt{5}}\end{array}$

The value of cosine angle is

$\begin{array}{l}\cos 鈦�胃=\frac{2a}{r_2}\\ \cos 鈦�胃=\frac{2a}{a\sqrt{5}}\\ \cos 鈦�胃=\frac{2}{\sqrt{5}}\end{array}$

The magnitude at electric field is at node one is

$E_1=\frac{1}{4蟺{蔚}_0}\frac{2q}{r_1^2}$

$E_1=\frac{1}{4蟺{蔚}_0}\frac{2q}{5a^2}$

The components as

$E_{1x}=E_1\sin 鈦�胃$

Substituting$\sin 胃$

$\begin{array}{l}{E}_{1x}=\frac{1}{4蟺{蔚}_0}\left(\frac{2q}{5a^2}\right)\left(\frac{1}{\sqrt{5}}\right)\\ E_{1x}=\frac{1}{4蟺{蔚}_0}\frac{2q}{5\sqrt{5}{a}^2}\end{array}$

The component $y$as

$\begin{array}{l}{E}_{1y}=\left(\frac{1}{4蟺{蔚}_0}\frac{2q}{5a^2}\right)\left(\frac{2}{\sqrt{5}}\right)\\ E_{1y}=\frac{1}{4蟺{蔚}_0}\frac{4q}{5\sqrt{5}{a}^2}\end{array}$

$E_{1y}=E_1\cos 鈦�胃$

Substituting$\cos 胃$

$\begin{array}{l}{E}_{1y}=\left(\frac{1}{4蟺{蔚}_0}\frac{2q}{5a^2}\right)\left(\frac{2}{\sqrt{5}}\right)\\ E_{1y}=\frac{1}{4蟺{蔚}_0}\frac{4q}{5\sqrt{5}{a}^2}\end{array}$

The $x$component at field as

$\begin{array}{l}{E}_{2x}=E_2\sin 鈦�胃\\ E_{2x}=\frac{1}{4蟺{蔚}_0}\frac{q}{5a^2}\left(\frac{1}{\sqrt{5}}\right)\\ E_{2x}=\frac{1}{4蟺{蔚}_0}\frac{q}{5\sqrt{5}{a}^2}\end{array}$

The $y$component at field as

$\begin{array}{l}{E}_{2y}=鈭�E_2\cos 鈦�胃\\ E_{2y}=鈭�\frac{1}{4蟺{蔚}_0}\frac{q}{5a^2}\left(\frac{2}{\sqrt{5}}\right)\\ E_{2y}=鈭�\frac{1}{4蟺{蔚}_0}\frac{2q}{5\sqrt{5}{a}^2}\end{array}$

The negative sign denotes field in downward side.

The field at node two $+2q$is

$E_{x,2q}=鈭�\frac{1}{4蟺{蔚}_0}\left(\frac{2q}{a^2}\right)$

The field at node two $-q$is

$\begin{array}{l}{E}_{x,鈭�q}=\frac{1}{4蟺{蔚}_0}\left(\frac{q}{(3a{)}^2}\right)\\ E_{x,鈭�q}=\frac{1}{4蟺{蔚}_0}\left(\frac{q}{9a^2}\right)\end{array}$

Because these two variables are solely on the $x$axis, their $y$components are zero.

The resultant field at node two is

$\stackrel{鈫�}{E}=\left(E_{x,2q}+E_{x,鈭�q}\right)\widehat{i}$

Substituting

$\begin{array}{l}\stackrel{鈫�}{E}=\left(鈭�\frac{1}{4蟺{蔚}_0}\left(\frac{2q}{a^2}\right)+\frac{1}{4蟺{蔚}_0}\left(\frac{q}{9a^2}\right)\right)\widehat{i}\\ \stackrel{鈫�}{E}=鈭�\frac{1}{4蟺{蔚}_0}\left(\frac{q}{a^2}\right)\left(\frac{17}{9}\right)\widehat{i}\\ \stackrel{鈫�}{E}=\left[鈭�\frac{17}{36蟺{蔚}_0}\left(\frac{q}{a^2}\right)\right]\widehat{i}\end{array}$

The resultant charges is

$\stackrel{鈫�}{E}=\left(E_{x,2q}+E_{x,鈭�q}\right)\widehat{i}$

Substituting

$\begin{array}{l}\stackrel{鈫�}{E}=\left(\frac{1}{4蟺{蔚}_0}\left(\frac{2q}{9a^2}\right)鈭�\frac{1}{4蟺{蔚}_0}\left(\frac{q}{a^2}\right)\right)\widehat{i}\\ E=\left(\frac{1}{4蟺{蔚}_0}\left(\frac{q}{a^2}\right)\left[\frac{2}{9}鈭�1\right]\right)\widehat{i}\\ E=\left[鈭�\frac{7}{36蟺{蔚}_0}\left(\frac{q}{a^2}\right)\right]\widehat{i}\end{array}$

The Diagram as

The distance from charge $2q$is

$\begin{array}{l}{r}_1^2=a^2+(2a{)}^2\\ r_1^2=a^2+4a^2\\ r_1^2=5a^2\end{array}$

The distance from charge $-q$is

$\begin{array}{l}{r}_2^2=a^2+(2a{)}^2\\ r_2^2=a^2+4a^2\\ r_2^2=5a^2\end{array}$

The sine angle as

$\begin{array}{l}\sin 鈦�胃=\frac{a}{r_2}\\ \sin 鈦�胃=\frac{a}{a\sqrt{5}}\\ \sin 鈦�胃=\frac{1}{\sqrt{5}}\end{array}$

The cosine angle as

$\begin{array}{l}\cos 鈦�胃=\frac{2a}{r_2}\\ \cos 鈦�胃=\frac{2a}{a\sqrt{5}}\\ \cos 鈦�胃=\frac{2}{\sqrt{5}}\end{array}$

Te field at component is

$E_x=E_{1x}+E_{2x}$

Substituting

$\begin{array}{l}{E}_x=\frac{1}{4蟺{蔚}_0}\frac{2q}{5\sqrt{5}{a}^2}+\frac{1}{4蟺{蔚}_0}\frac{q}{5\sqrt{5}{a}^2}\\ E_x=\frac{1}{4蟺{蔚}_0}\left(\frac{3q}{5\sqrt{5}{a}^2}\right)\end{array}$

Similarlly,

$\begin{array}{l}{E}_y=鈭�\frac{1}{4蟺{蔚}_0}\frac{4q}{5\sqrt{5}{a}^2}+\frac{1}{4蟺{蔚}_0}\frac{2q}{5\sqrt{5}{a}^2}\\ E_y=鈭�\frac{1}{4蟺{蔚}_0}\left(\frac{2q}{5\sqrt{5}{a}^2}\right)\end{array}$

The net field in component as

$\stackrel{鈫�}{E}=E_x\widehat{i}+E_y\widehat{j}$

Substituting the values

$\begin{array}{l}\stackrel{鈫�}{E}=\left[\frac{1}{4蟺{蔚}_0}\left(\frac{3q}{5\sqrt{5}{a}^2}\right)\right]\widehat{i}+\left[鈭�\frac{1}{4蟺{蔚}_0}\left(\frac{2q}{5\sqrt{5}{a}^2}\right)\right]\widehat{j}\\ \stackrel{鈫�}{E}=\frac{1}{4蟺{蔚}_0}\left(\frac{q}{5\sqrt{5}{a}^2}\right)(3\widehat{i}鈭�2\widehat{j}).\end{array}$
