Chapter 34: Q. 33 (page 991)

A 20-cm-tall object is 40cmin front of a converging lens that has a20cm focal length.
a Use ray tracing to find the position and height of the image. To do this accurately, use a ruler or paper with a grid. Determine the image distance and image height by making measurements on your diagram.
bCalculate the image position and height. Compare with your ray-tracing answers in part a.

Short Answer

Expert verified

Part a

aThe image distance is s'=40cmand image height ish'=2.0cm.

Part b

bThe image distance is s'=40cmand image height is h'=2.0cm.

The both part agrees.

Step by step solution

01

Step: 1 Finding lateral magnification:

From thin lens equation,

1s+1s鈥�=1f

The convex lens of focal lens is positive and concave lens is negative:the image virutal is negative and real image distance is positive.

The lateral magnification is

|M|=image heightobject height=h鈥�hM=鈭�s鈥�s

object height ish=2.0cm.

The lens is converging.

The distance lens object iss=40cm.

The focal length islocalid="1649230311637" f=20cm.

02

Step: 2 Finding image distance: (part a)

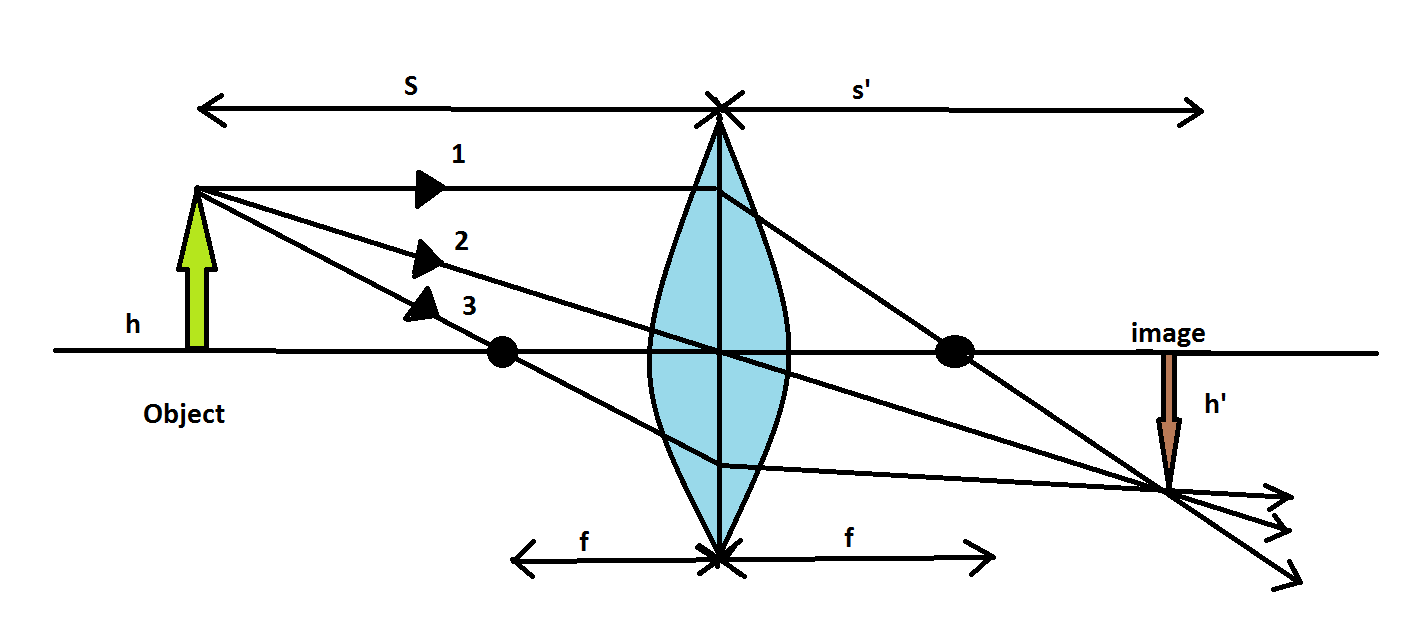

The ray trace diagram is

From lens equation is

1s+1s鈥�=1f1s鈥�=1f鈭�1s1s鈥�=s鈭�fsfs鈥�=(40cm)脳(20cm)40cm鈭�20cms鈥�=40cm.

03

Step: 3 Finding image height: (part b)

The lateral magnification lens by

M=鈭�s鈥�sM=鈭�40cm40cmM=鈭�1.|M|=h鈥�hh鈥�=h|M|h鈥�=(2.0cm)脳(1)h鈥�=2.0cm.

By comparing, the both parts are agree.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The place you get your hair cut has two nearly parallel mirrors 5.0 m apart. As you sit in the chair, your head is 2.0m from the nearer mirror. Looking toward this mirror, you first see your face and then, farther away, the back of your head. (The mirrors need to be slightly nonparallel for you to be able to see the back of your head, but you can treat them as parallel in this problem.) How far away does the back of your head appear to be? Neglect the thickness of your head

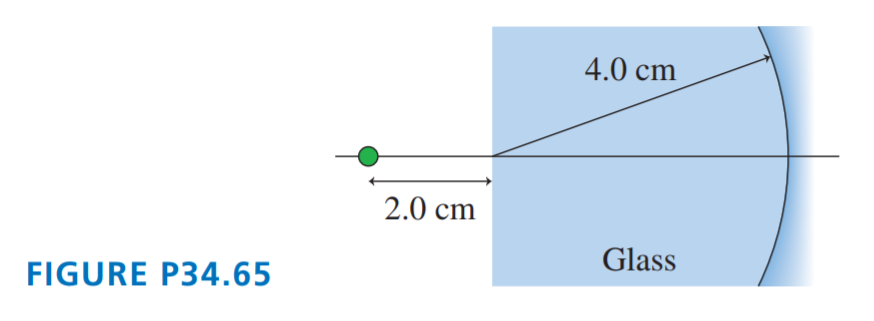

The mirror in FIGURE P34.65 is covered with a piece of glass. A point source of light is outside the glass. How far from the mirror is the image of this source?
