Chapter 38: Q. 47 (page 1115)

The electron interference pattern of Figure 38.12 was made by shooting electrons with 50keVof kinetic energy through two slits spaced role="math" localid="1650737433408" 1.0渭尘apart. The fringes were recorded on a detector 1.0mbehind the slits.

a. What was the speed of the electrons? (The speed is large enough to justify using relativity, but for simplicity do this as a nonrelativistic calculation.)

b. Figure 38.12 is greatly magnified. What was the actual spacing on the detector between adjacent bright fringes?

Short Answer

Expert verified

(a) The speed of the electron isv=1.33脳108ms

(b) The actual distance between consecutive light fringes on the detector is螖测=5.47渭尘

Step by step solution

01

Given information

The kinetic energy of electrons is 50 KeV and a detector captured the fringes is 1.0 m

02

Part (a) Step 1: Given information

The electron starts at rest (or close to it), thus the kinetic energy obtained is12mv2

03

Part (a) Step 2: Finding the electron's speed using kinetic energy

We can begin by calculating the electron's speed using kinetic energy,

Ek=mv22v=2Ekmexpressvv=2鈰�50脳103脳1.6脳10鈭�199.11脳10鈭�31v=1.33鈰�108ms

04

Part (b) Step 1: Given information

On a detector 1.0 m behind the slits, the fringes were recorded

05

Part (b) Step 2: Determine the double slit experiment, fringe spacing

In a double slit experiment, we can now utilise an expression for fringe spacing.

螖测=尝位d位=hmv(de Broglie wavelength)螖测=Lhmvd(substitute位)螖测=1鈰�6.63脳10鈭�349.11脳10鈭�31脳1.33脳108脳1脳10鈭�6(substitute)螖测=5.47渭尘

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

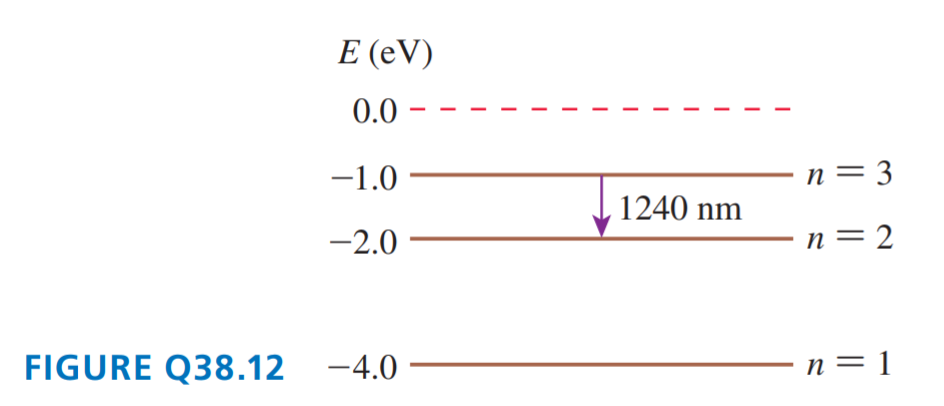

FIGURE Q38.12 shows the energy-level diagram of Element X.
