Chapter 26: Q. 66 (page 740)

High-frequency signals are often transmitted along a coaxial cable, such as the one shown in FIGURE P26.66. For example, the cable TV hookup coming into your home is a coaxial cable. The signal is carried on a wire of radius $R_{1}$ while the outer conductor of radius $R_{2}$ is grounded (i.e., at $V = 0 V$ ). An insulating material fills the space between them, and an insulating plastic coating goes around the outside.
a. Find an expression for the capacitance per meter of a coaxial cable. Assume that the insulating material between the cylinders is air.
b. Evaluate the capacitance per meter of a cable having $R_{1} = 0.50 m m$ and $R_{2} = 3.0 m m .$

Short Answer

Expert verified

a. The expression for the capacitance per meter of a coaxial cable is $\frac{2 蟺蔚_{0}}{\ln (\frac{R_{2}}{R_{1}})} .$

b. The capacitance of a cable is $31 pF / m .$

Step by step solution

01

Given Information (Part a)

The signal is carried on a wire of radius $R_{1} a n d R_{2}$

Voltage $= 0 V$

02

Explanation (Part a)

a. Applying Gauss's law for the cylinder with linear charge density $位$ , to get electric field outside of a cylinder as

$E 路 2 蟺 r L = \frac{Q}{蔚_{0}} 鈬� E (r) = \frac{Q}{2 蟺蔚_{0} L r}$

Potential difference for two cylinders will be

$螖 V = {鈭�}_{R_{1}}^{R_{2}} E (r) d r = \frac{Q}{2 蟺蔚_{0} L} {鈭�}_{R_{1}}^{R_{2}} \frac{d r}{r} = \frac{Q}{2 蟺蔚_{0} L} \ln (\frac{R_{2}}{R_{1}})$

Find the capacitance per unit length as

$\frac{C}{L} = \frac{Q}{L 螖 V} = \frac{2 蟺蔚_{0}}{\ln (\frac{R_{2}}{R_{1}})}$

Hence, the expression for the capacitance per meter of a coaxial cable is $= \frac{2 蟺蔚_{0}}{\ln 鈦� (\frac{R_{2}}{R_{1}})}$

03

Given Information (Part a)

The signal is carried on a wire of radius $R_{1}$ and $R_{2}$

$Voltage = 0 V$

04

Explanation (Part b)

In the given numerical case, we will have

$\frac{C}{L} = \frac{2 蟺蔚_{0}}{\ln (\frac{R_{2}}{R_{1}})}$

Substitute the values,

localid="1648629781694" $\frac{C}{L} = (\frac{2 蟺脳 8.85 脳 10^{- 12}}{\ln (\frac{3 m m}{0.5 m m})})$

Multiply the expression,

$= 3.1 路 10^{- 11} F / m$

Hence, the capacitance of a cable is $31 p F / m$

Unlock Step-by-Step Solutions & Ace Your Exams!

Full Textbook Solutions
Get detailed explanations and key concepts
Unlimited Al creation
Al flashcards, explanations, exams and more...
Ads-free access
To over 500 millions flashcards
Money-back guarantee
We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The metal spheres are charged to $\begin{matrix} + \\ - \end{matrix} 300$ . Draw this figure on your paper, then draw a plausible contour map of the potential, showing and labeling the equipotential surfaces.

The electric potential in a region of space is V=200/2x2+y2,where x and y are in meters. What are the strength and direction of the electric field at 1x, y2=12.0 m, 1.0 m2? Give the direction as an angle cw or ccw (specify which) from the positive x-axis

The electric potential along the $x - a x i s is V = 100 x^{2}$ V, where $x$ is in meters. What is $E_{x}$ at

(a) $x = 0 m$ and

(b) $x = 1 m$ ?

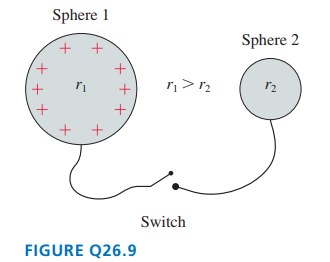

The two metal spheres in Figure Q26.9 are connected by a metal wire with a switch in the middle. Initially the switch is open. Sphere 1, with the larger radius, is given a positive charge. Sphere 2, with the smaller radius, is neutral. Then the switch is closed. Afterward, sphere 1 has charge $Q_{1}$ , is at potential $V_{1}$ , and the electric field strength at its surface is $E_{1}$ . The values for sphere 2 are $Q_{2}, V_{2}, and E_{2}$ .
