Chapter 7: Q.57 (page 181)

FIGURECP7.57shows a200ghamster sitting on an 800gwedge-shaped block. The block, in turn, rests on a spring scale. An extra-fine lubricating oil having 渭s=渭k=0is sprayed on the top surface of the block, causing the hamster to slide down. Friction between the block and the scale is large enough that the block does not slip on the scale. What does the scale read, in grams, as the hamster slides down?

Short Answer

Expert verified

The hamster slides down in scale is about920g

Step by step solution

01

Given information

mass of hamster m=200g

mass of the block M=800g

Angle of wedge block胃=400

02

Explanation

The hamster accelerates down the block with a=gcos胃

The vertical component of this acceleration is: ay=gcos2(胃)

So the downward force exerted by the hamster on the block and thus onto the scale is

Fh=may

The net force exerted by the hamster on the block and thus onto the scale is

F=Mg+mgcos2(胃)鈬�F=0.8脳9.8+0.2脳9.8脳cos2(40)鈬�F=9.0N

Therefore, the net force in gram can be calculated as

F=msg=9.0Nms=99.8脳1000=920g

Therefore, the hamster slides down in scale about920g

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A mobile at the art museum has a 2.0kgsteel cat and a 4.0kgsteel dog suspended from a lightweight cable, as shown in FIGURE EX7.23.It is found that 胃1=20掳when the center rope is adjusted to be perfectly horizontal. What are the tension and the angle of rope 3?

FIGUREP7.39shows a block of mass m resting on a 20掳slope. The block has coefficients of friction渭s=0.80 and渭k=0.50 with the surface. It is connected via a massless string over a massless, frictionless pulley to a hanging block of mass 2.0kg.

a. What is the minimum mass m that will stick and not slip?

b. If this minimum mass is nudged ever so slightly, it will start being pulled up the incline. What acceleration will it have?

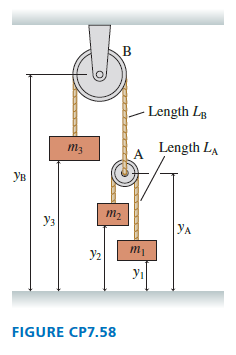

FIGURECP7.58shows three hanging masses connected by massless strings over two massless, frictionless pulleys.

a. Find the acceleration constraint for this system. It is a single equation relatinglocalid="1649865348893" a1y,a2y,anda3y.Hint:yAisn鈥檛 constant.

b. Find an expression for the tension in string A.Hint: You should be able to write four second-law equations. These, plus the acceleration constraint, are five equations in five unknowns.

c. Suppose:m1=2.5kg,m2=1.5kg,andm3=4.0kg.Find the acceleration of each.

d. The 4.0kgmass would appear to be in equilibrium. Explain why it accelerates.

While driving to work last year, I was holding my coffee mug in my left hand while changing the CD with my right hand. Then the cell phone rang, so I placed the mug on the flat part of my dashboard. Then, believe it or not, a deer ran out of the woods and on to the road right in front of me. Fortunately, my reaction time was zero, and I was able to stop from a speed of 20m/s in a mere 50m, just barely avoiding the deer. Later tests revealed that the static and kinetic coefficients of friction of the coffee mug on the dash are 0.50 and 0.30, respectively; the coffee and mug had a mass of 0.50kg; and the mass of the deer was 120kg. Did my coffee mug slide?

How do basketball players jump straight up into the air? Your explanation should include an interaction diagram and a free-body diagram.
