Chapter 7: Q. 21 (page 178)

The cable cars in San Francisco are pulled along their tracks by an underground steel cable that moves along at 9.5mph.The cable is driven by large motors at a central power station and extends, via an intricate pulley arrangement, for several miles beneath the city streets. The length of a cable stretches by up to 100ftduring its lifetime. To keep the tension constant, the cable passes around a 1.5mdiameter 鈥渢ensioning pulley鈥� that rolls back and forth on rails, as shown inFIGURE100ft. A 2000kgblock is attached to the tensioning pulley鈥檚 cart, via a rope and pulley, and is suspended in a deep hole. What is the tension in the cable car鈥檚 cable?

Short Answer

Expert verified

The tension in the cable car's cable is9800N.

Step by step solution

01

Given information

Speed of the steel cable=9.5mph

The length of a cable stretch=100ft

The cable passes around the diameter=1.5m

Mass of the cable=2000kg

02

Explanation

As weight is moving uniformly , net force on it will be zero . So total upward force is equal to total downward force.

Force acting downwards

F=mg.....................(1)

Tension of rope be T . So total force acting upwards is 2T . 2T will balance the weight .

Further, the tension localid="1649675027629" 2T=F........................(2)

Since the frictional force=0

Substituting the values in the equation1

F=22009.8F=19600N

Substituting the values in the equation 2

localid="1649613408531" T=19600N2=9800N

The tension in the cable car's cable T=9800N

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A 70kg tightrope walker stands at the center of a rope. The rope supports are 10m apart and the rope sags 10掳 at each end. The tightrope walker crouches down, then leaps straight up with an acceleration of 8.0m/s2 to catch a passing trapeze. What is the tension in the rope as he jumps?

A mosquito collides head-on with a car traveling 60mph.Is the magnitude of the mosquito鈥檚 acceleration larger than, smaller than, or equal to the magnitude of the car鈥檚 acceleration? Explain.

The 1.0kgphysics book in FIGURE P7.41is connected by a string to a 500gcoffee cup. The book is given a push up the slope and released with a speed of 3.0m/s. The coefficients of friction are 渭s=0.50and 渭k=0.20

a. How far does the book slide?

b. At the highest point, does the book stick to the slope, or does it slide back down?

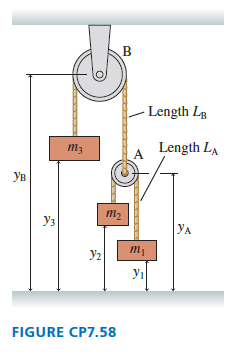

FIGURECP7.58shows three hanging masses connected by massless strings over two massless, frictionless pulleys.
