For a projectile, which of the following quantities are constant during the flight: x,y,r,vx,vy,v,ax,ay? Which of these quantities are zero throughout the flight?

Short Answer

Expert verified

axremains zero throughout the flight.

Step by step solution

01

Step.1

Projectile motion is study of motion of an object thrown near the Earth surface. In this motion the object moves in two dimensions by following a curved path and the only acceleration is due to gravity.

When the object was thrown upwards making some angle with the horizontal, the magnitude of the position vector is expressed as,

r=x2+y2

Here, xand yare horizontal and vertical displacements respectively.

The magnitude of its velocity is,

v=vx2+vy2

Here, vxand vyare horizontal and vertical components of velocity.

02

Step.2

The vertical component of velocity decreases while going up and increases while coming down due to downward acceleration ay=g. However, the horizontal component of velocity vx remains constant as there is no horizontal acceleration ax=0. But due to initial horizontal velocity, the object undergoes horizontal displacement (x).

Since,vy is not constantvis also not constant andralso changes. The vertical component of acceleration is equal to acceleration due to gravity which is a constant.

Therefore, the quantities ax,ay and vxremain constant during the flight.

03

Step.3.

From the above discussion, the horizontal component of accelerationaxis always zero throughout the flight.

Therefore, only axremains zero throughout the flight.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

You’ve been assigned the task of using a shaft encoder a device that measures the angle of a shaft or axle and provides a signal to a computer to analyze the rotation of an engine crankshaft under certain conditions. The table lists the crankshaft’s angles over a 0.6sinterval.

Is the crankshaft rotating with uniform circular motion? If so, what is its angular velocity in rpm? If not, is the angular acceleration positive or negative?

A skateboarder starts up a 1.0-m-high, 30° ramp at a speed of 7.0 m/s. The skateboard wheels roll without friction. At the top she leaves the ramp and sails through the air. How far from the end of the ramp does the skateboarder touch down?

A projectile is launched from ground level at angle θand speed

v0into a headwind that causes a constant horizontal acceleration

of magnitude aopposite the direction of motion.

a. Find an expression in terms of aand gfor the launch angle

that gives maximum range.

b. What is the angle for maximum range if ais 10% of g?

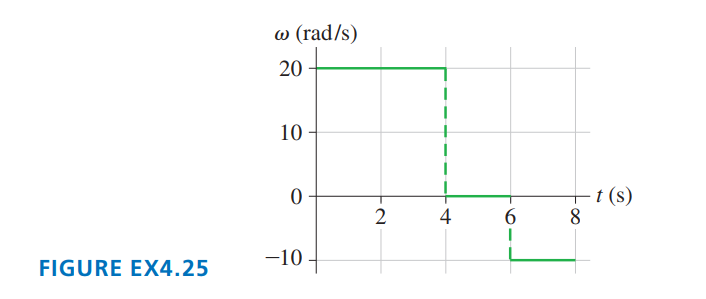

25. II FIGURE EX4.25 shows the angular-velocity-versus-time graph for a particle moving in a circle, starting from θ0=0 â¶ÄŠr²¹»åat t=0s. Draw the angular-position-versus-time graph. Include an appropriate scale on both axes.

An electromagnet on the ceiling of an airplane holds a steel ball. When a button is pushed, the magnet releases the ball. The experiment is first done while the plane is parked on the ground, and the point where the ball hits the floor is marked with an X. Then the experiment is repeated while the plane is flying level at a steady 500mph. Does the ball land slightly in front of the X (toward the nose of the plane), on the X, or slightly behind the X(toward the tail of the plane)? Explain.
