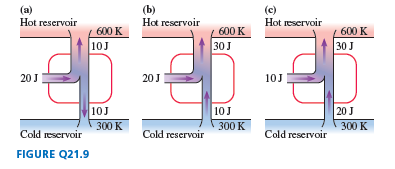

Do the energy-transfer diagrams inFIGUREQ21.9represent possible refrigerators? If not, what is wrong?

Short Answer

Expert verified

a. The figure is not refrigerator ,because this engine dumps heat in the cold reservoir which is not a refrigerator does.

b. In figure K<Kc,so it is refrigerator engine.

c. In figure K>Kc,so it is not refrigerator engine.

Step by step solution

01

Possible of refrigerators for part a

a.

WorkWinis used to compress a coolant and raise its temperature over that of the surrounding environment.

Win=QH−QC

Consider the figure of part a,

20=(10-10)

20≠0

02

Possible of refrigerators for part b

b.

Consider the part b of figure,


The efficiency of normal refrigerator engine is,

K=QCWin

K=10/20=0.5

The efficiency of carnot refrigerator engine is,

Kc=T1T2-T1

Kc=300/300=1

So it's a possibility.

03

 Possible of refrigerators for part c

c.

Consider the figure,


The efficiency of normal refrigerator engine is,

K=QCWin

K=20/10=2

The efficiency of carnot refrigerator engine is,

Kc=T1T2-T1

Kc=300/300=1

So it's a possibility.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A heat engine does 200Jof work per cycle while exhausting 400Jof waste heat. What is the engine’s thermal efficiency?

The cycle of FIGURE Ex21.9consists of three processes. Make a table with rows labeled A-Cand columns labeled∆Eth, Ws, and Q. Fill each box in the table with +,-, or 0to indicate whether the quantity increases, decreases, or stays the same during that process.

There has long been an interest in using the vast quantities of thermal energy in the oceans to run heat engines. A heat engine needs a temperature difference, a hot side and a cold side. Conveniently, the ocean surface waters are warmer than the deep ocean waters. Suppose you build a floating power plant in the tropics where the surface water temperature is ≈30°C. This would be the hot reservoir of the engine. For the cold reservoir, water would be pumped up from the ocean bottom where it is always ≈5°C. What is the maximum possible efficiency of such a power plant?

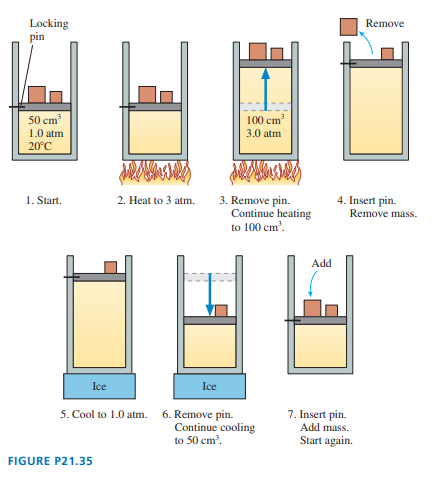

FIGURE P21.35 shows a heat engine going through one cycle. The gas is diatomic. The masses are such that when the pin is removed, in steps 3and 6, the piston does not move.
