Given :

Electric flux through the surface :$25N{m}^2/C$

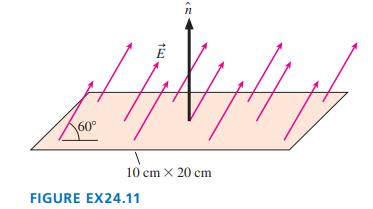

Figure -

Theory used :

The quantity of electric field passing through a closed surface is known as the Electric flux. Gauss's law indicates that the electric field across a surface is proportional to the angle at which it passes, hence we can determine charge inside the surface using the equation below.

${\mathrm{Φ}}_e=E·A·\cos \mathrm{θ}$ (1)

Where $\mathrm{θ}$is the angle formed between the electric field and the normal.

The electric field is uniform here, and the sheet is tilted to the electric field by an angle of $30°$, hence we use equation (1) to calculate flux.

As indicated in the diagram, $\mathrm{θ}$may be calculated as :

$\mathrm{θ}=90°-30°=60°$

On the flat sheet, where $\mathrm{θ}$does not change and $A$is the area of the flat sheet, which we can get by :

role="math" localid="1649658814933" $A=(0.10m×0.20m)=2x{10}^{-2}m²$

Rewriting equation (1), we get :

$E=\frac{{\mathrm{Φ}}_e}{A\cos \mathrm{θ}}$ (2)

Plugging in our values for $E,A\mathrm{and}\mathrm{θ}$into equation (2) to get the electric flux :

$$\begin{gathered} E=\frac{{\mathrm{Φ}}_e}{A\cos \mathrm{θ}} \\ =\frac{(25N·m²/C}{(2x{10}^{-2}m²)(\cos 30°)} \\ =\boxed{\mathbf{1}\mathbf{.}\mathbf{4}\mathbf{×}{\mathbf{10}}^{\mathbf{3}}\mathbf{}\mathbf{N}\mathbf{/}\mathbf{C}} \end{gathered}$$
