Chapter 14: Q.12 (page 384)

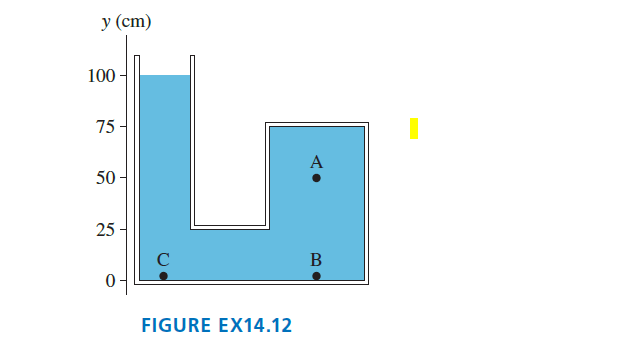

The container shown in FIGURE EX14.12 is filled with oil. It is open to the atmosphere on
the left.
a. What is the pressure at point A?
b. What is the pressure difference between points A and B? Between points A and C?

Short Answer

Expert verified

a) Total pressure = 106 kPa

b) the pressure difference is PC-PA=4263PaPB-PA=4263Pa

Step by step solution

01

Part(a) Given information

The tank and points are given in figure below

02

Part(a) Step 2: Explanation

Calculate the pressure at point A

PA=h蚁g

Substitute the given values, density of oil , 蚁 = 870 kg/m3
g= 9.81 m/s2. h=0.5 m ( from the figure)
and calculate

=0.5脳870脳9.8=4263Pa

PTotal = Patm + Poil

PTota = 101325+4263 Pa=106 kPa

03

Part(b) Given information

The tanks details and points are given in the figure.

04

Part(b) Step2: Explanation

From the figure the depth at the points B and C is 1 m.

So the pressure at B and C is same

PB=h蚁g=1.0脳870脳9.8=8526Pa

PB=PC=8526Pa

We have calculated in Part(a)

PA = 4263 Pa

So

PB-PA=8526-4263=4263Pa

Similarly

PC-PA=8526-4263=4263Pa

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A cylinder with cross-section area Afloats with its long axis vertical in a liquid of density 蚁.

a. Pressing down on the cylinder pushes it deeper into the liquid. Find an expression for the force needed to push the cylinder distance xdeeper into the liquid and hold it there.

b. A 4.0-cm-diameter cylinder floats in water. How much work must be done to push the cylinder 10cmdeeper into the water?

A friend asks you how much pressure is in your car tires. You know that the tire manufacturer recommends 30psi, but it's been a while since you've checked. You can't find a tire gauge in the car, but you do find the owner's manual and a ruler. Fortunately, you've just finished taking physics, so you tell your friend, "I don't know, but I can figure it out." From the owner's manual you find that the car's mass is1500kg. It seems reasonable to assume that each tire supports one-fourth of the weight. With the ruler you find that the tires are 15cm wide and the flattened segment of the tire in contact with the road is 13cm long. What answer-in psi-will you give your friend?

A research submarine has a 20-cm-diameter window 8.0 cm thick. The manufacturer says the window can withstand forces up to 1.0 * 106 N. What is the submarine鈥檚 maximum
safe depth? The pressure inside the submarine is maintained at 1.0 atm.

Styrofoam has a density of 150kg/m3. What is the maximum mass that can hang without sinking from a 50-cm-diameterStyrofoam sphere in water ?Assume the volume of the mass is negligible compared to that of the sphere.

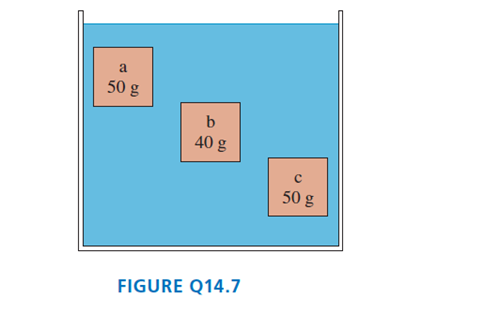

Blocks a, b, and c in FIGURE Q14.7 have the same volume. Rank in order, from largest to smallest, the sizes of the buoyant forces Fa , Fb , and Fc on a, b, and c. Explain.
