Chapter 14: Q. 34 (page 385)

A 3.0-m-tall, 50-cm-diameter concrete column supports a 200,000 kg load. By how much is the column compressed?

Short Answer

Expert verified

The column is compressed by1mm.

Step by step solution

01

Given information

The radius of the concrete column is r=50cm2=25cm=0.25m

Mass of the load is m=200,000kg

The length of the concrete column isL=3.0m

02

Compression produced in the column

The gravitational force on the load produces tensile stress FA, where Ais the cross-sectional area of the concrete column and Fis the gravitational force on the load.

Young's modulus given by Y=FA鈭�LL.

The compression produced in the column is

鈭�L=FALY=mg蟺谤2LY=200000脳9.8蟺0.2523.03脳1010=1mm

Therefore, the column is compressed by1mm.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

The deepest point in the ocean is 11 km below sea level, deeper than Mt. Everest is tall. What is the pressure in atmospheres at this depth?

Wind blows over the house in FIGURE Q14.11. A window on the ground floor is open. Is there an airflow through the house? If so, does the air flow in the window and out the chimney, or in the chimney and out the window? Explain.

Cylinders A and B have equal heights. Cylinder A is filled with helium gas at 1.0 atm pressure and 0oC. The diameter of cylinder B is half that of cylinder A, and cylinder B is filled with glycerin. What is the ratio of the fluid mass in cylinder B to that in cylinder A?

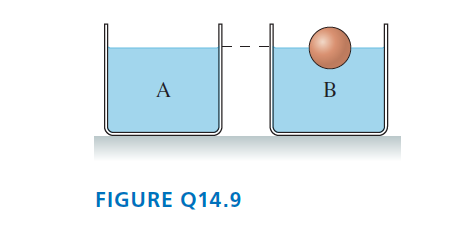

The two identical beakers in FIGURE Q14.9 are filled to the same height with water. Beaker B has a plastic sphere floating in it. Which beaker, with all its contents, weighs more? Or are they equal? Explain.
