Chapter 31: Q. 24 (page 902)

Only 25%of the intensity of a polarized light wave passes through a polarizing filter. What is the angle between the electric field and the axis of the filter?

Short Answer

Expert verified

Angle between field of force and also the axis of the filter, 胃=60掳

Step by step solution

01

Polarizing filter

Horizontal polarizing occurs when light reflects off horizontal surfaces like the road, water, or snow. A vertically oriented polarized filter will reduce glare while still allowing many light to experience. A polarized filter on your camera can assist decrease glare. The identical principle applies to polarized sunglasses.

02

Calculate θ

I/Io=25%

We may find angle by staring the subsequent relation胃:

I=Iocos2胃

We are now calculating for胃

I=Io(cos胃)2

cos2胃=IIo (Where is I/Io=25%)

cos2胃=0.25

cos胃=0.5

胃=60掳

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A laser beam shines straight up onto a flat, black foil of mass m.

a. Find an expression for the laser power Pneeded to levitate the foil.

b. Evaluate Pfor a foil with a mass of 25渭驳.

What capacitance, in 渭F, has its potential difference increasing at 1.0脳106V/swhen the displacement current in the capacitor is 1A?

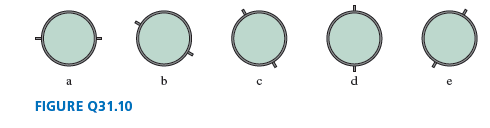

A vertically polarized electromagnetic wave passes through the five polarizers in FIGUREQ31.10. Rank in order, from largest to smallest, the transmitted intensitiesIatoIe.
