Chapter 8: Q.26 (page 199)

A heavy ball with a weight of 100N (m=10.2kg) is hung from the ceiling of a lecture hall on a 4.5-m-long rope. The ball is pulled to one side and released to swing as a pendulum, reaching a speed of 5.5m/s as it passes through the lowest point. What is the tension in the rope at that point?

Short Answer

Expert verified

The tension in the rope at that point isT=169N.

Step by step solution

01

Given Information

A heavy ball with a weight of 100N(m=10.2kg)is hung from the ceiling of a lecture hall on a 4.5-m-long rope.

02

Explanation

To find the tension in the rope at the point

T-mg=mv2r

Where,

T-is the tension in the string

m-mass of the ball

g-is the acceleration due to gravity

v-is the velocity

r-is the radius

Here,

T=10.2脳9.8+10.2脳(5.5)24.5

T=169N

03

Final Answer

The tension in the rope at that point is T=169N.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

Elm Street has a pronounced dip at the bottom of a steep hill before going back uphill on the other side. Your science teacher has asked everyone in the class to measure the radius of curvature of the dip. Some of your classmates are using surveying equipment, but you decide to base your measurement on what you鈥檝e learned in physics. To do so, you sit on a spring scale, drive through the dip at different speeds, and for each speed record the scale鈥檚 reading as you pass through the bottom of the dip. Your data are as follows:

Speed m/sec

Scale Reading N

5

599

10

625

15

674

20

756

25

834

A motorcycle daredevil plans to ride up a 2.0-m-high, 20掳ramp, sail across a 10-m-wide pool filled with hungry crocodiles, and land at ground level on the other side. He has done this stunt many times and approaches it with confidence. Unfortunately, the motorcycle engine dies just as he starts up the ramp. He is going 11m/sat that instant, and the rolling friction of his rubber tires (coefficient 0.02) is not negligible. Does he survive, or does he become crocodile food? Justify your answer by calculating the distance he travels through the air after leaving the end of the ramp.

Suppose the moon were held in its orbit not by gravity but by a massless cable attached to the center of the earth. What would be the tension in the cable? Use the table of astronomical data inside the back cover of the book

A jet plane is flying on a level course at constant speed. The engines are at full throttle.

a. What is the net force on the plane? Explain.

b. Draw a free-body diagram of the plane as seen from the side with the plane flying to the right. Name (don鈥檛 just label) any and all forces shown on your diagram.

c. Airplanes bank when they turn. Draw a free-body diagram of the plane as seen from behind as it makes a right turn.

d. Why do planes bank as they turn? Explain.

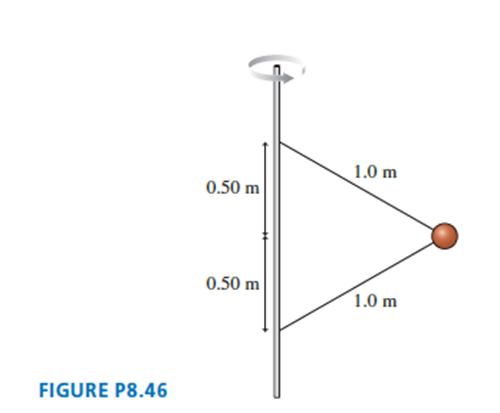

Two wires are tied to the 300 g sphere shown in FIGURE P8.46. The sphere revolves in a horizontal circle at a constant speed of 7.5 m/s. What is the tension in each of the wires?
