A 500g ball swings in a vertical circle at the end of a 1.5-m-long string. When the ball is at the bottom of the circle, the tension in the string is 15N. What is the speed of the ball at that point?

Short Answer

Expert verified

The speed of the ball at that point is5.5m/s.

Step by step solution

01

Given Information

A 500g ball swings in a vertical circle at the end of a 1.5-m-long string.

02

Explanation

From the information given in the question, we obtain that:

m-The mass of the ball =500g

r-The radius of the string is =1.5m

T-The tension in the ring is 15N

g-The acceleration due to the gravity=9.8m/s2

The tension in the string when the body is at the bottom is given by:

T=mv2r+mg

role="math" localid="1648313980593" 15=0.5v21.5+0.5×9.8

15-4.9=0.5v21.5

10.1×1.5=0.5v2

v=5.5m/s

03

Final Answer

The speed of the ball at the point is5.5m/s

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

A rocket-powered hockey puck has a thrust of 2.0N and a total mass of 1.0kg. It is released from rest on a frictionless table, 4.0m from the edge of a 2.0m drop. The front of the rocket is pointed directly toward the edge. How far does the puck land from the base of the table?

A motorcycle daredevil plans to ride up a 2.0-m-high, 20°ramp, sail across a 10-m-wide pool filled with hungry crocodiles, and land at ground level on the other side. He has done this stunt many times and approaches it with confidence. Unfortunately, the motorcycle engine dies just as he starts up the ramp. He is going 11m/sat that instant, and the rolling friction of his rubber tires (coefficient 0.02) is not negligible. Does he survive, or does he become crocodile food? Justify your answer by calculating the distance he travels through the air after leaving the end of the ramp.

FIGUREQ8.5shows two balls of equal mass moving in vertical circles. Is the tension in string Agreater than, less than, or equal to the tension in string Bif the balls travel over the top of the circle (a) with equal speed and (b) with equal angular velocity?

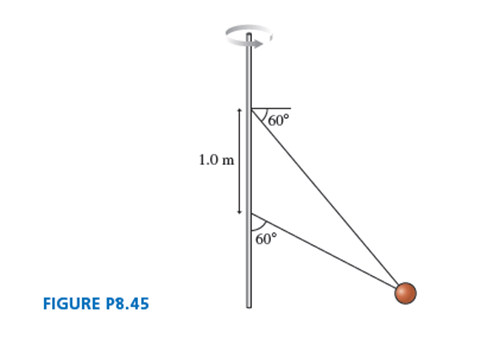

Two wires are tied to the 2.0 kg sphere shown in FIGURE P8.45. The sphere revolves in a horizontal circle at constant speed.
