Chapter 8: Q. 70 (page 203)

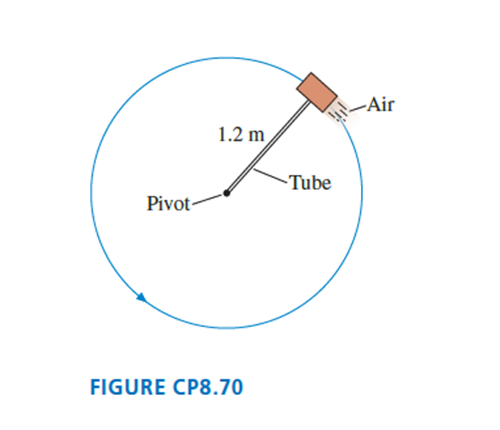

A 500 g steel block rotates on a steel table while attached to a 1.2-m-long hollow tube as shown in FIGURE CP8.70. Compressed air fed through the tube and ejected from a nozzle on the back of the block exerts a thrust force of 4.0 N perpendicular to the tube.

The maximum tension the tube can withstand without breaking is 50 N. If the block starts from rest, how many revolutions does it make before the tube breaks?

Short Answer

Expert verified

The number of revolution before is breaks is : 0.995

Step by step solution

01

Given information

Mass of block = 500 g = 0.5 kg

Radius of rotation = 1.2-m-long

Thrust force of 4.0 N perpendicular to the tube.

The maximum tension the tube can withstand without breaking is 50 N.

02

Explanation

As the thrust is perpendicular to the tube. so , the tangential component of the thrust force is Ft=4N

and radial component Fr=0

Lets find the angular acceleration of the block

伪=Ftmr

Substitute the values

伪=4N(0.5kg)脳(1.2m)=6.667rad/s2

We can find the angular velocity when it breaks by equating radial force with maximum withstand force

mr蝇2=50N蝇2=50Nmr鈭�蝇2=50N0.5kg脳1.2m蝇=9.129rad/s

Use this angular speed and acceleration to find the rotations made.

蝇2=蝇02+2伪胃胃=蝇2-蝇022a胃=(9.129rad/s)2-(0rad/s)22脳(6.667rad/s2)胃=6.25rad=0.995rotation

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

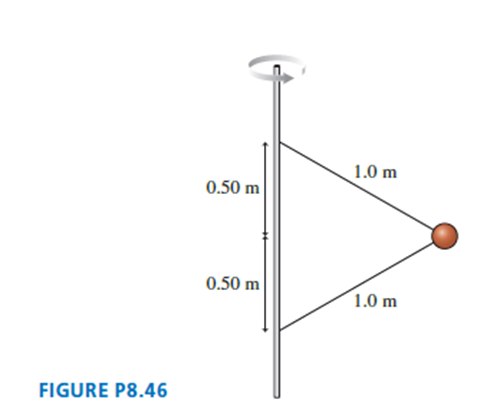

Two wires are tied to the 300 g sphere shown in FIGURE P8.46. The sphere revolves in a horizontal circle at a constant speed of 7.5 m/s. What is the tension in each of the wires?
