Chapter 8: Q. 44 (page 200)

A charged particle of mass m moving with speed v in a plane perpendicular to a magnetic field experiences a force where q is the amount of charge and F鈨�=(qvB,perpendiculartov鈨�) , B is the magnetic field strength. Because the force is always perpendicular to the particle鈥檚 velocity, the particle undergoes uniform circular motion. Find an expression for the period of the motion. Gravity can be neglected.

Short Answer

Expert verified

Period is expressed as T=2蟺mqB

Step by step solution

01

Given information

Given F鈨�=(qvB,perpendiculartov鈨�)

02

Explanation

As the particle is moving in circular motion, so

(mv2)r=qvB

Expressed as r

r=(mv2)qvB=mvqB..........................(1)

Time period for this revolutions is

T=2蟺rv

Substitute value of r from equation(1), we get

T=(2蟺/v)(mv/qB)T=2蟺mqB

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91影视!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

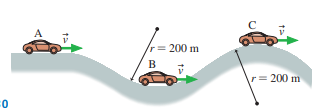

Three cars are driving at25m/salong the road shown in FIGURE EX8.30. Car B is at the bottom of a hill and car C is at the top. Both hills have a 200m radius of curvature. Suppose each car suddenly brakes hard and starts to skid. What is the tangential acceleration (i.e., the acceleration parallel to the road) of each car? Assume localid="1647757037587" 渭K=1.0.

In Problems 64 and 65 you are given the equation used to solve a problem. For each of these, you are to
a. Write a realistic problem for which this is the correct equation. Besure that the answer your problem requests is consistent with the equation given.
b. Finish the solution of the problem.
60 N = (0.30 kg)蠅2(0.50 m)

While at the county fair, you decide to ride the Ferris wheel. Having eaten too many candy apples and elephant ears, you find the motion somewhat unpleasant. To take your mind off your stomach, you wonder about the motion of the ride. You estimate the radius of the big wheel to be 15m, and you use your watch to find that each loop around takes 25s.

a. What are your speed and the magnitude of your acceleration?

b. What is the ratio of your weight at the top of the ride to your weight while standing on the ground?

c. What is the ratio of your weight at the bottom of the ride to your weight while standing on the ground?

You鈥檝e taken your neighbor鈥檚 young child to the carnival to ride the rides. She wants to ride The Rocket. Eight rocket-shaped cars hang by chains from the outside edge of a large steel disk. A vertical axle through the center of the ride turns the disk, causing the cars to revolve in a circle. You鈥檝e just finished taking physics, so you decide to figure out the speed of the cars while you wait. You estimate that the disk is 5m in diameter and the chains are 6m long. The ride takes 10s to reach full speed, then the cars swing out until the chains are 20掳 from vertical. What is the cars鈥� speed?

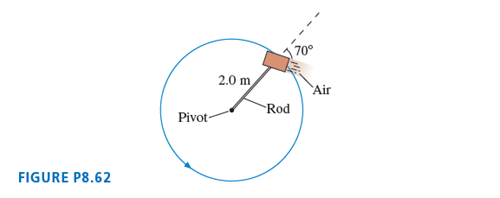

A 500 g steel block rotates on a steel table while attached to a 2.0-m-long massless rod. Compressed air fed through the rod is ejected from a nozzle on the back of the block, exerting a thrust force of 3.5 N. The nozzle is 70o颅 from the radial line, as shown in FIGURE P8.62. The block starts from rest.
a. What is the block鈥檚 angular velocity after 10 rev?
b. What is the tension in the rod after 10 rev?
