The circuit shown in Figure 18.107 consists of a single battery, whose emf is 1.8V, and three wires made of the same material but having different cross-sectional areas. Each thick wire has a cross-sectional area 1.4×10-6m2and is 25cmlong. The thin wire has a cross-sectional area 5.9×10-6m2and is 6.1cmlong. In this metal, the electron mobility is 5×10-4(ms)(Vm), and there are 4×1028mobile electrons/m3.

(a) Which of the following statements about the circuit in the steady state are true? (1) At location B, the electric field points toward the top of the page. (2) The magnitude of the electric field at locations F and C is the same. (3) The magnitude of the electric field at locations D and F is the same. (4) The electron current at location D is the same as the electron current at location F . (b) Write a correct energy conservation (loop) equation for this circuit, following a path that starts at the negative end of the battery and goes counterclockwise. (c) Write this circuit's correct charge conservation (node) equation. (d) Use the appropriate equation(s), plus the equation relating electron current to electric field, to solve for the magnitudes EDand EF of the electric field at locations D and F . (e) Use the appropriate equation(s) to calculate the electron current at location D in the steady state.

Short Answer

Expert verified

Statements (1), (2), and (4) are true about the circuit in the steady state condition.

Step by step solution

01

Write the given data from the question.

Emf of battery, V=1.8V

Cross sectional area of thick wire,A1=1.4×10-6m2

Length of thick wire,L1=25cm

Cross sectional area of thin wire,A2=5.9×10-6m2

Length of thin wire,L2=6.1cm

Electron mobility, μ=5×10-4ms/Vm

Electron density,n=4×1028e/m3

02

Determine the formulas to find the correct statement in the steady state of the circuit.

The electric field is defined as the ratio of the voltage and length of the wire.

The expression to calculate the magnitude of the electric field is given as follows.


E=VL

Here, Vis the voltage and Lis the length of the wire.

03

Find the correct statement in the steady state about the circuit.

The direction of the electric field is away from the battery's positive terminal and toward the negative terminal. Therefore, the electric field moves from the positive terminal to the battery's negative terminal. So, the direction of the electric field at the location is toward the top of the page.

The electric field depends on the voltage and length of the wire. Because at locations F and C, the voltage and length of the wire are the same. But at the locations F and D length of both the wire are different. Therefore, the magnitude of the electric field is the same at locations F and C but different at locations F and D.

At the steady state condition of the circuit, the electron current at all the locations is the same.

Hence the statement (1), (2), and (4) are true about the circuit in the steady state condition.

Unlock Step-by-Step Solutions & Ace Your Exams!

  • Full Textbook Solutions

    Get detailed explanations and key concepts

  • Unlimited Al creation

    Al flashcards, explanations, exams and more...

  • Ads-free access

    To over 500 millions flashcards

  • Money-back guarantee

    We refund you if you fail your exam.

Over 30 million students worldwide already upgrade their learning with 91Ó°ÊÓ!

One App. One Place for Learning.

All the tools & learning materials you need for study success - in one app.

Get started for free

Most popular questions from this chapter

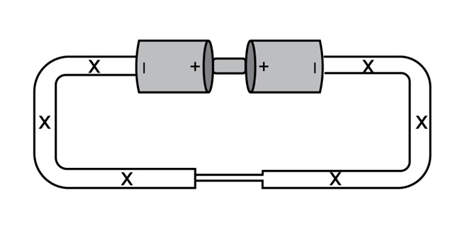

Why does the brightness of a bulb not change noticeably when you use longer copper wires to connect it to the battery? (1) Very little energy is dissipated in the thick connecting wires. (2) The electric field in connecting wires is very small, so emf≈EbulbLbulb. (3) Electric field in the connecting wires is zero, so emf≈EbulbLbulb. (4) Current in the connecting wires is smaller than current in the bulb. (5) All the current is used up in the bulb, so the connecting wires don’t matter.

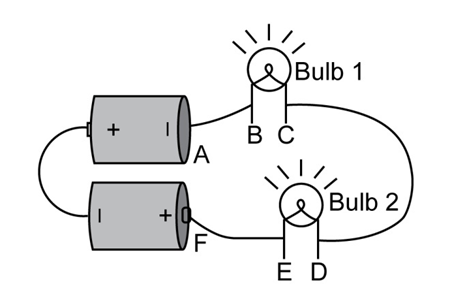

In the circuit shown in Figure 18.87, bulbs 1 and 2 are identical in mechanical construction (the filaments have the same length and the same cross-sectional area), but the filaments are made of different metals. The electron mobility in the metal used in bulb 2 is three times as large as the electron mobility in the metal used in bulb 1, but both metals have the same number of mobile electrons per cubic meter. The two bulbs are connected in series to two batteries with thick copper wires (like your connecting wires).
